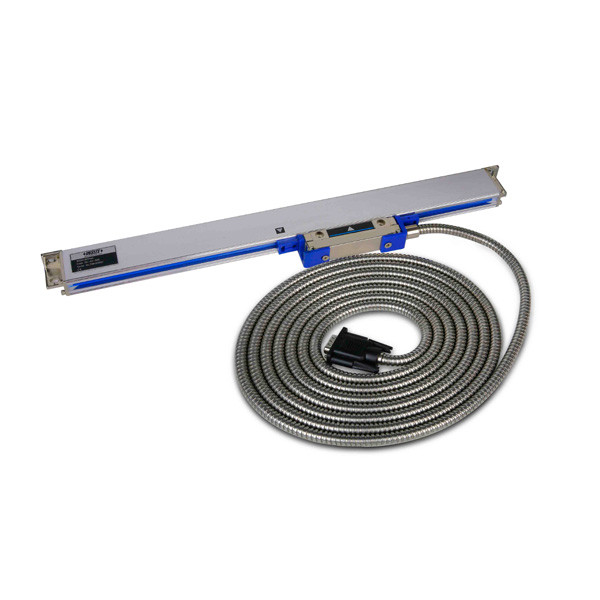

Insize ISL-B5-1200 – Linear Scale, 48IN/1200MM
L. Dewitt's SKU #: ISL-B5-1200 | Mfr Part #: ISL-B5-1200Insize ISL-B5-1200 is a 48IN/1200MM linear scale with .0002IN resolution for adding digital readout to a machine tool axis such as a mill or lathe.
Key Features
- Effective length 48IN/1200MM
- Resolution .0002IN
- Accuracy ±(197 + 5L)μin, L = effective length in inches
- Max response speed 196FT/min
- Grating pitch 787μin; reference point pitch 1.97IN
- Cable length 200IN (for 40-60IN scales)
Technical Specifications
| Part Number | ISL-B5-1200 |
| Brand | Insize |
| Manufacturer Part Number | ISL-B5-1200 |
| Product Type | Linear Scale |
| Effective Length | 48IN / 1200MM |
| Resolution | .0002IN |
| Accuracy | ±(197 + 5L)μin |
| Max Response Speed | 196FT/min |
| Grating Pitch | 787μin |
| Cable Length | 200IN |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 10.1 lb |
| Package Dimensions | 56.3IN L x 6.5IN W x 5.12IN H |
| UPC/EAN | 6928640322297 |
| Sold As | 1 Each |
