Description

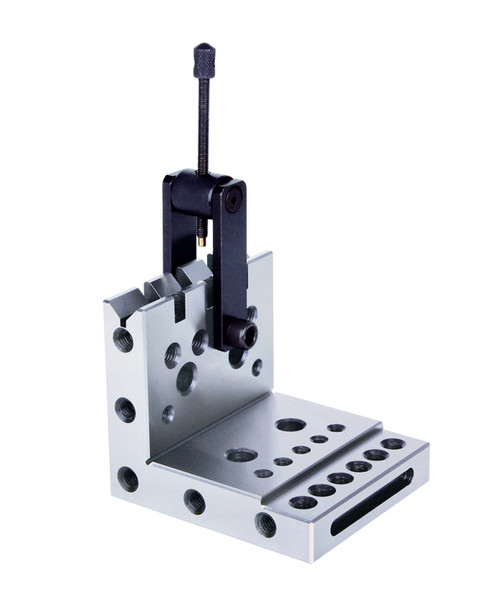

Insize 6547-E1 – Right Angle Plate, 3.9x3.9x4.5IN
L. Dewitt's SKU #: 6547-E1 | Mfr Part #: 6547-E1Insize 6547-E1 is a 3.9x3.9x4.5IN hardened right angle plate with a V groove for cylinders, held to 236μin parallelism and squareness, for setting up and inspecting work at 90°.
Key Features
- Size 3.9 x 3.9 x 4.5IN
- Hardened to HRC60±2
- V groove for cylindrical work
- Parallelism and squareness between faces A-H: 236μin
- Parallelism and squareness of V groove to faces A-H: 236μin
Technical Specifications
| Part Number | 6547-E1 |
| Brand | Insize |
| Manufacturer Part Number | 6547-E1 |
| Product Type | Right Angle Plate |
| Size | 3.9 x 3.9 x 4.5IN |
| Hardness | HRC60±2 |
| Parallelism / Squareness | 236μin |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 9.01 lb |
| Package Dimensions | 8.07IN L x 5.71IN W x 5.31IN H |
| UPC/EAN | 6928640359521 |
| Sold As | 1 Each |
Choosing between options
- Need magnetic hold? 6539-100 is a 4x4x4IN magnetic square with V groove.
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and plate size — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
6547-E1 |
Product Family: |
Squares, Levels, and Angle Measurement |
Supplier Category Code: |
A |
EAN: |
6928640359521 |
Package Weight: |
9.01 lb |
Package Length: |
8.07 in |
Package Width: |
5.71 in |
Package Height: |
5.31 in |
Feature 1: |
Hardened to HRC60±2. V groove for cylinders. |
Feature 2: |
Parallelism and squareness between A, B, C, D, E, F, G and H: 236μin. |
Feature 3: |
Parallelism and squareness of V groove to A, B, C, D, E, F, G and H: 236μin. |
