Insize

Insize 4003-12 – Angle Plate Set, 12 Pcs

(No reviews yet) Write a Review

Tracked & insured shipping

Free Returns



30 Days Money Back Guarantee

SKU:
4003-12
UPC:
6928640355127
MPN:
4003-12
Availability:
Ships direct from Insize. Most items in stock; we confirm your ship date by email after you order.
Weight:
2.64 LBS
Width:
6.97 (in)
Height:
1.73 (in)
Depth:
12.09 (in)
Shipping:
Calculated at Checkout
$392.77

Sold Out

Frequently bought together:

Description

Insize 4003-12 – Angle Plate Set, 12 Pcs

L. Dewitt's SKU #: 4003-12  |  Mfr Part #: 4003-12

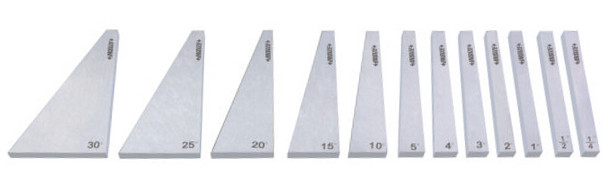

Insize 4003-12 is a 12-piece tool steel angle plate set from 1/4° to 30° for angle set-up in tooling, production and inspection. The 1/4° and 1/2° plates let you fine-tune a set-up between whole degrees.

Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.

Key Features

  • 12 plates: 1/4°, 1/2°, 1°, 2°, 3°, 4°, 5°, 10°, 15°, 20°, 25°, 30°
  • For angle set-up in tooling, production and inspection
  • Tool steel, hardness HRC55

Technical Specifications

Part Number4003-12
BrandInsize
Manufacturer Part Number4003-12
Product TypeAngle Plate Set, 12 Pcs
Pieces12
Angles1/4°, 1/2°, 1°, 2°, 3°, 4°, 5°, 10°, 15°, 20°, 25°, 30°
MaterialTool steel
HardnessHRC55
AvailabilityShips direct from Insize; most items in stock. Ship date confirmed by email after you order.
Shipping Weight2.64 lb
Package Dimensions12.09IN L x 6.97IN W x 1.73IN H
UPC/EAN6928640355127
Sold As1 Set (12 plates)

Choosing between options

  • Whole degrees only? 4003-10 is the 10-piece set, 1° to 30°.

Other sizes & versions in this series

Request a Quote

Need volume pricing or help matching the right Insize part?

Send the part number, quantity and the angles you need to set up — we reply the same day.

Contact Information

Authorized Insize distributor

📍  Nationwide shipping | Live Oak, TX

📞  (210) 494-1997

✉  [email protected]

View AllClose

Additional Information

Brand:
Insize
Manufacturer Part Number:
4003-12
Product Family:
Testing and Specialty Instruments
Supplier Category Code:
A
EAN:
6928640355127
Package Weight:
2.64 lb
Package Length:
12.09 in
Package Width:
6.97 in
Package Height:
1.73 in
Feature 1:
For angle set-up in tooling, production and inspection.
Feature 2:
Hardness HRC55.
Feature 3:
12 Pieces in Set
Feature 4:
Angle Degrees: 1/4', 1/2', 1,2,3,4,5,10,15,20,25,30
Feature 5:
Made of tool steel
