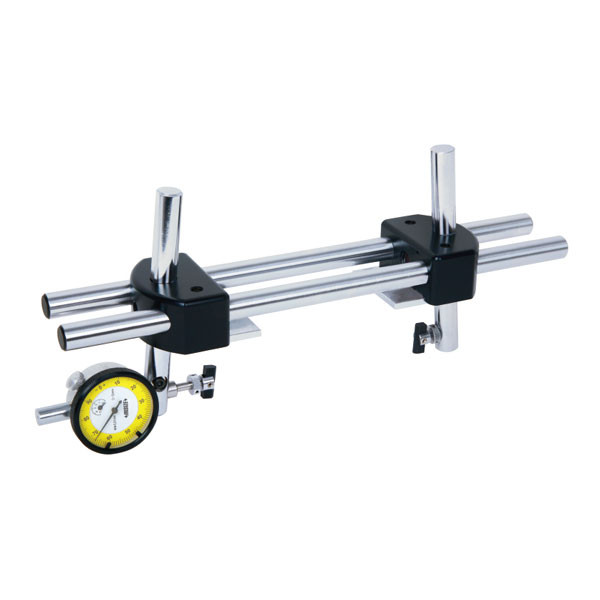

Insize 2236-5 External Thread Crest Diameter Measuring Instrument, 2 3/8"-5 1/2"/60.325-139.7Mm
L. Dewitt McCarter SKU #: 2236-5 | Mfr Part #: 2236-5
Insize 2236-5 is a indicators and test indicators product built for setup technicians, machinists, and inspectors checking runout, alignment, and small movement. Use it when measurement work needs repeatable product identification, practical specs, and a clear fit for the inspection task.
- Quality inspectors confirming dimensions before parts move downstream
- Machinists checking work at the machine or on the surface plate
- Maintenance teams replacing worn or missing measuring tools by part number
- Purchasing teams standardizing inspection equipment across departments
2236-5: External Thread Crest Diameter Measuring Instrument, 2 3/8"-5 1/2"/60.325-139.7Mm. This Insize item is selected when teams need reliable measuring, gaging, or inspection support with clear part-number traceability and package details for ordering and receiving.
Why This Model
Choose this model when the job calls for runout, alignment, comparative measurement, and machine setup and the buyer needs a specific Insize part number rather than a generic substitute.
After matching the tool to the feature being checked, teams can reduce rework, speed up inspection, and keep measurement decisions consistent across shifts.
Technical Specifications
| Brand | Insize |
| Manufacturer Part Number | 2236-5 |
| Product Family | Indicators and Test Indicators |
| Supplier Category Code | A |
| EAN | 6928640384646 |
| Package Weight | 5.51 lb |
| Package Length | 12.91 in |
| Package Width | 11.3 in |
| Package Height | 3.62 in |
| Feature 1 | Dial indicator graduation 0.01mm |
| Feature 2 | Accuracy 0.02mm |
| Feature 3 | Measure the crest diameter of external thread with nominal diameter larger than 2 3/8"(60.325mm) and less than 20" (508mm) |
| Feature 4 | Optional accessory: height standard and zero standard block |
