Insize

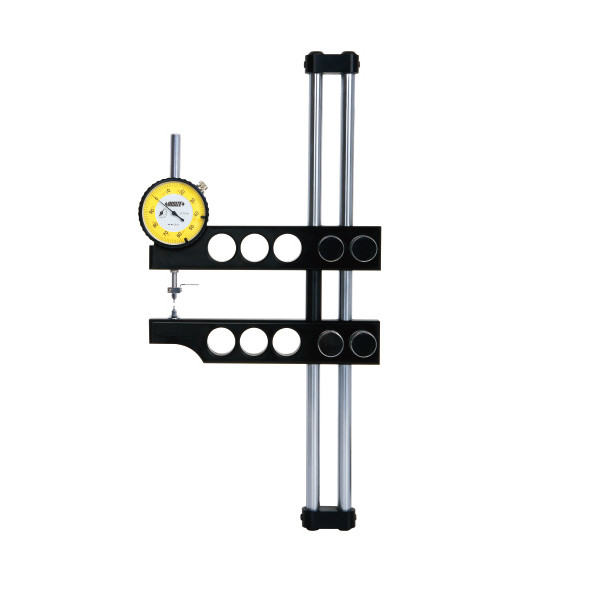

Insize 2230-45 – External Thread Taper Measuring Instrument, 1-4-1/2IN/25.4-114.3MM

(No reviews yet) Write a Review

Tracked & insured shipping

Free Returns



30 Days Money Back Guarantee

SKU:
2230-45
UPC:
6928640383120
MPN:
2230-45
Availability:
Ships direct from Insize. Most items in stock; we confirm your ship date by email after you order.
Weight:
6.61 LBS
Width:
12.60 (in)
Height:
5.12 (in)
Depth:
19.69 (in)
Shipping:
Calculated at Checkout
$2,337.95

Sold Out

Frequently bought together:

Description

Insize 2230-45 – External Thread Taper Measuring Instrument, 1-4-1/2IN/25.4-114.3MM

L. Dewitt's SKU #: 2230-45  |  Mfr Part #: 2230-45

Insize 2230-45 measures the taper of external threads, range 1IN to 4-1/2IN (25.4-114.3MM), reading on a dial indicator with .001IN graduation and .5IN stroke.

Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Gaging a different thread size or class? Send us the part number — we match the plug and rings and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.

Key Features

  • Range 1IN to 4-1/2IN (25.4-114.3MM)
  • Dial indicator graduation .001IN, stroke .5IN
  • Measures the taper of external threads

Technical Specifications

Part Number2230-45
BrandInsize
Manufacturer Part Number2230-45
Product TypeExternal Thread Taper Measuring Instrument
Range1IN to 4-1/2IN (25.4-114.3MM)
Dial Indicator Graduation.001IN
Dial Indicator Stroke.5IN
AvailabilityShips direct from Insize; most items in stock. Ship date confirmed by email after you order.
Shipping Weight6.61 lb
Package Dimensions19.69IN L x 12.6IN W x 5.12IN H
UPC/EAN6928640383120
Sold As1 Each

What you'll also need

  • Ball points (optional accessory)

Choosing between options

  • Internal threads: 2231-6 is the internal thread taper measuring instrument for 1-6IN/25.4-152.4MM.

Other sizes & versions in this series

Request a Quote

Need volume pricing or help matching the right Insize part?

Send the part number, quantity and thread size, thread form and taper — we reply the same day.

Contact Information

Authorized Insize distributor

📍  Nationwide shipping | Live Oak, TX

📞  (210) 494-1997

✉  [email protected]

View AllClose

Additional Information

Brand:
Insize
Manufacturer Part Number:
2230-45
Product Family:
Indicators and Test Indicators
Supplier Category Code:
A
EAN:
6928640383120
Package Weight:
6.61 lb
Package Length:
19.69 in
Package Width:
12.6 in
Package Height:
5.12 in
Feature 1:
Dial indicator graduation .001'
Feature 2:
Dial indicator stroke .5'
Feature 3:
Measure the taper of external thread
Feature 4:
Optional accessory: ball points
