Description

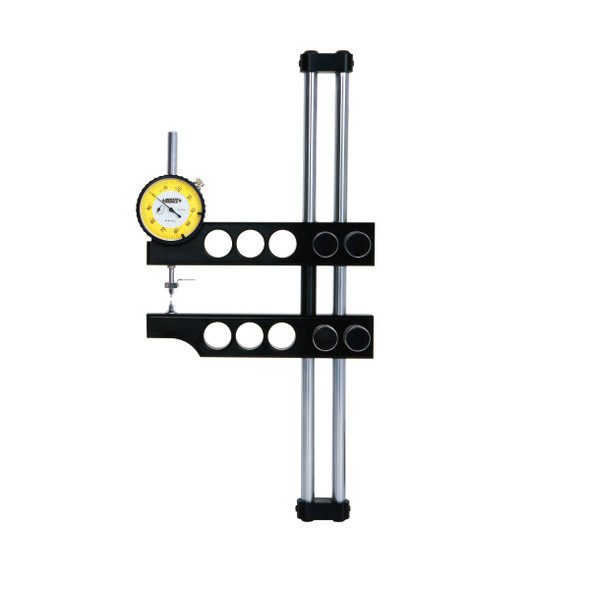

Insize 2230-10 – External Thread Taper Measuring Instrument, 0-10IN/0-254MM
L. Dewitt's SKU #: 2230-10 | Mfr Part #: 2230-10Insize 2230-10 measures the taper of external threads, range 0-10IN/0-254MM, reading on a dial indicator with .001IN graduation and .5IN stroke.
Key Features
- Range 0-10IN/0-254MM
- Dial indicator graduation .001IN, stroke .5IN
- Measures the taper of external threads
Technical Specifications
| Part Number | 2230-10 |
| Brand | Insize |
| Manufacturer Part Number | 2230-10 |
| Product Type | External Thread Taper Measuring Instrument |
| Range | 0-10IN/0-254MM |
| Dial Indicator Graduation | .001IN |
| Dial Indicator Stroke | .5IN |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 6.61 lb |
| Package Dimensions | 19.69IN L x 12.6IN W x 5.12IN H |
| UPC/EAN | 6928640382949 |
| Sold As | 1 Each |
What you'll also need
- Ball points (optional accessory)
Choosing between options
- Internal threads: 2231-6 is the internal thread taper measuring instrument for 1-6IN/25.4-152.4MM.
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and thread size, thread form and taper — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2230-10 |
Product Family: |
Indicators and Test Indicators |
Supplier Category Code: |
A |
EAN: |
6928640382949 |
Package Weight: |
6.61 lb |
Package Length: |
19.69 in |
Package Width: |
12.6 in |
Package Height: |
5.12 in |
Feature 1: |
Dial indicator graduation .001' |
Feature 2: |
Dial indicator stroke .5' |
Feature 3: |
Measure the taper of external thread |
Feature 4: |
Optional accessory: ball points |
