Description

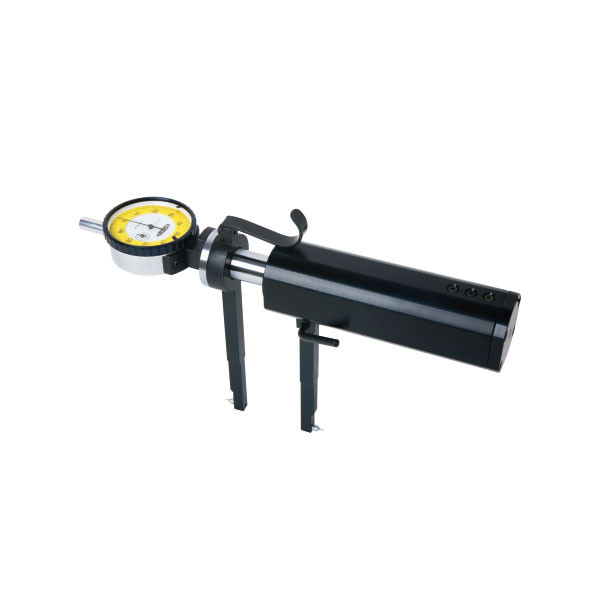

Insize 2231-16 – Internal Thread Taper Measuring Instrument, 5-1/2IN-16IN/139.7-406.4MM
L. Dewitt's SKU #: 2231-16 | Mfr Part #: 2231-16Insize 2231-16 measures the taper of internal threads, range 5-1/2IN to 16IN (139.7-406.4MM), reading on a dial indicator with .001IN graduation and 1IN stroke.
Key Features
- Range 5-1/2IN to 16IN (139.7-406.4MM)
- Dial indicator graduation .001IN, stroke 1IN
- Measures the taper of internal threads
Technical Specifications
| Part Number | 2231-16 |
| Brand | Insize |
| Manufacturer Part Number | 2231-16 |
| Product Type | Internal Thread Taper Measuring Instrument |
| Range | 5-1/2IN to 16IN (139.7-406.4MM) |
| Dial Indicator Graduation | .001IN |
| Dial Indicator Stroke | 1IN |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 6.61 lb |
| Package Dimensions | 16.14IN L x 12.2IN W x 5.12IN H |
| UPC/EAN | 6928640384516 |
| Sold As | 1 Each |
What you'll also need
- Ball points (optional accessory)
Choosing between options
- External threads: 2230-16 is the external thread taper measuring instrument for 8-16IN/203.2-406.4MM.
Other sizes & versions in this series
- 2231-6 – 1-6IN/25.4-152.4MM
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and thread size, thread form and taper — we reply the same day.
