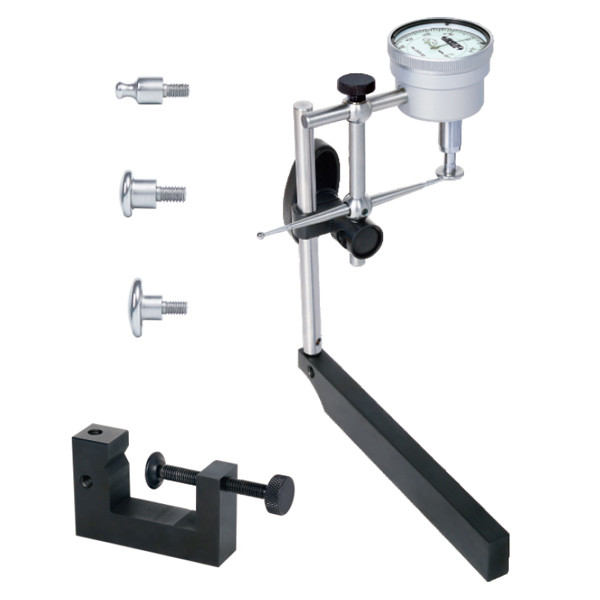

Insize 2224-02 – Back Plunger Type Dial Indicator Set, .2IN
L. Dewitt's SKU #: 2224-02 | Mfr Part #: 2224-02Insize 2224-02 is a back plunger dial indicator set, .2IN range with .001IN graduation, for setups where the spindle must come out the back of the indicator. With double-end lever styli the range is .1IN.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range .2IN, graduation .001IN
- Accuracy ±.001IN
- Range per revolution .1IN; dial reading 0-100
- Range is .1IN when using double-end lever styli
Technical Specifications
| Part Number | 2224-02 |
| Brand | Insize |
| Manufacturer Part Number | 2224-02 |
| Product Type | Back Plunger Type Dial Indicator Set |
| Range | .2IN |
| Graduation | .001IN |
| Accuracy | ±.001IN |
| Range per Revolution | .1IN |
| Dial Reading | 0-100 |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 2.65 lb |
| Package Dimensions | 11.81IN L x 9.84IN W x 5.91IN H |
| UPC/EAN | 6940561962147 |
| Sold As | 1 Set |
Choosing between options
- Digital back plunger option: 2118-10E reads to .0005IN/0.01MM over .5IN/12.7MM.
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and what the set needs to include — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2224-02 |
Product Family: |
Indicators and Test Indicators |
Supplier Category Code: |
A |
EAN: |
6940561962147 |
Package Weight: |
2.65 lb |
Package Length: |
11.81 in |
Package Width: |
9.84 in |
Package Height: |
5.91 in |
Feature 1: |
Graduation .001' |
Feature 2: |
Accuracy: ± .001' |
Feature 3: |
Range/rev .1' |
Feature 4: |
Dial reading 0-100 |
Feature 5: |
When using double-end lever styli, the range is .1' |
