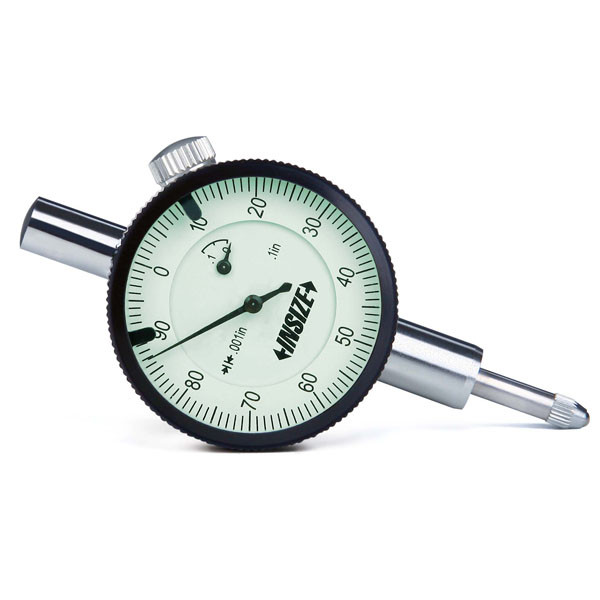

Insize 2304-02 – Compact Dial Indicator, Lug Back, .2IN
L. Dewitt's SKU #: 2304-02 | Mfr Part #: 2304-02Insize 2304-02 is a compact dial indicator, .2IN range with .001IN graduation and a lug back, for mounting where a full-size indicator won't fit. Made to ASME B89.1.10M-2001.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Magnetic stand 6201-60 | Holds the indicator on any steel surface for setup and runout checks. | Add to cart |
| Magnetic stand, larger 6202-80 | Longer reach and fine adjustment for bigger setups. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range .2IN, graduation .001IN
- Compact body
- Lug back for mounting
- Limit pointers and bezel clamp included
- Meets ASME B89.1.10M-2001
Technical Specifications
| Part Number | 2304-02 |
| Brand | Insize |
| Manufacturer Part Number | 2304-02 |
| Product Type | Compact Dial Indicator, Lug Back |
| Range | .2IN |
| Graduation | .001IN |
| Back | Lug back |
| Standard | ASME B89.1.10M-2001 |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 0.66 lb |
| Package Dimensions | 6.1IN L x 3.82IN W x 2.64IN H |
| UPC/EAN | 6928640329524 |
| Sold As | 1 Each |
What you'll also need
- Optional backs and contact points
Choosing between options
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and range, graduation and back style — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2304-02 |
Product Family: |
Indicators and Test Indicators |
Supplier Category Code: |
A |
EAN: |
6928640329524 |
Package Weight: |
0.66 lb |
Package Length: |
6.1 in |
Package Width: |
3.82 in |
Package Height: |
2.64 in |
Feature 1: |
Graduation .001' |
Feature 2: |
Meet ASME B89.1.10M-2001. |
Feature 3: |
Supplied with limit pointers and bezel clamp. |
Feature 4: |
Optional accessory: backs, contact points. |
