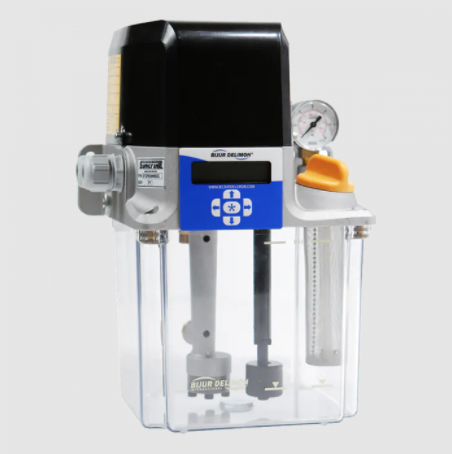

Bijur Delimon SureFire II 12 Liter SLR Lubricator | 100/115 VAC | Lite Controller
L. Dewitt's SKU #: SFX12MASNNNCXC | Mfr Part #: SFX12MASNNNCXCThe Bijur Delimon SureFire II (SFX12MASNNNCXC) is a self-contained, motor-driven gear pump engineered for automatic, centralized lubrication on industrial production machinery. Configured as a 12 Liter SLR system with 100/115 VAC power and Lite Controller, this pump serves up to 100 lubrication points and is designed to reduce bearing failures, minimize machine downtime, and eliminate the inconsistency of manual lubrication.
Single Line Resistance (SLR) System
The SFX SLR version is designed for Single Line Resistance cyclic lubrication systems. The gear pump delivers pressurized oil to the distribution network, forcing all resistance fittings (meter units) to flow proportioned quantities of oil to each friction point simultaneously. The pump builds pressure until the pressure relief valve setting of 75 psi (5 bar) is reached. Once the motor stops, line pressure returns to near 0 psi, actuating a quick-dump valve that relieves the lines back to the reservoir. SLR systems serve up to 100 lubrication points and use oil exclusively.
Lite Controller / Monitor
The SureFire II Lite Controller is a multi-purpose programmable controller with up to four selectable operating modes for use with various lubrication system designs. Includes a digital status display on the front of the pump, system monitoring capabilities, and a data memory function that retains settings on power down.
Technical Specifications
| Distribution System | SLR (Single Line Resistance) |
| Max Output Pressure | 75 psi (5 bar) |
| Pressure Switch Setting | Closes at 20 psi (1.4 bar) |
| Output Volume | 250 cc/min @ 60 Hz / 210 cc/min @ 50 Hz |
| Motor Voltage | 100/115 VAC, 50/60 Hz Single Phase, 1.0A running (1.2A peak start) |
| Reservoir Capacity | 12 Liter |
| Reservoir Material | Metal - Painted Steel |
| Lubricant | Standard Oil (20-1500 cSt) - Viscosity 20 to 1,500 cSt at operating temperature |
| Method of Fill | Standard Filler Cap |
| Level Monitoring | Standard (N/O Float Switch) |
| Pressure Monitoring | Pressure Switch (N/O) + Pressure Gauge |
| Integrated Controls | Lite Controller |
| Electric Connector | 2x Cable Glands |
| Output Connections | G 1/4 BSPP (x2, one each side) |
| Return Line | G 1/4 BSPP |
| IP Rating | IP-54 |
| Operating Temperature | 40F - 105F (5C - 40C) |
| Dimensions (approx.) | 271mm W x 166mm D x 295mm H |
Key Features
- Self-Contained Electric Pump: Motor-driven gear pump with reservoir, pump head, and controls in one compact unit - no external power unit required.
- SLR (75 psi (5 bar) max) Distribution: Engineered to drive Bijur Delimon SLR systems with precise, repeatable lubrication delivery.
- 12 Liter Metal - Painted Steel Reservoir: Built for industrial duty - sized to your lubrication interval and machine footprint.
- Level Monitoring: Standard (N/O Float Switch) - protects machinery from running dry.
- G 1/4 BSPP Outlets (x2): Oil outlet connections on either side of the pump head for flexible installation and plumbing routing.
- CE Approved / IP-54 Rated: Liquid-tight electrical fitting; operates from 40F to 105F (5C-40C).
Common Applications
- Single Line Resistance (SLR) systems with Bijur meter units
- CNC Machining Centers and Transfer Lines
- Industrial Presses and Stamping Equipment
- Injection Molding Machines
- Conveyor and Material Handling Systems
Technical Support & System Design
Need help selecting the right SureFire II configuration or designing a complete lubrication system? L. Dewitt McCarter, Inc. is your authorized Bijur Delimon source.
Contact Our Technical TeamWarranty Information
Additional Information
Bijur Part Number: |
SFX12MASNNNCXC |
Distribution System: |
SLR (Single Line Resistance) (75 psi (5 bar) max) |
Reservoir: |
12 Liter, Metal - Painted Steel |
Voltage: |
100/115 VAC, 50/60 Hz (1.0A) |
Controller: |
Lite Controller |
Lubricant: |
Standard Oil (20-1500 cSt) |
Level Monitoring: |
Standard (N/O Float Switch) |
Pressure Monitoring: |
Pressure Switch (N/O) + Pressure Gauge |
Method of Fill: |
Standard Filler Cap |
Electric Connector: |
2x Cable Glands |
Lead Time: |
40-50 business days |
