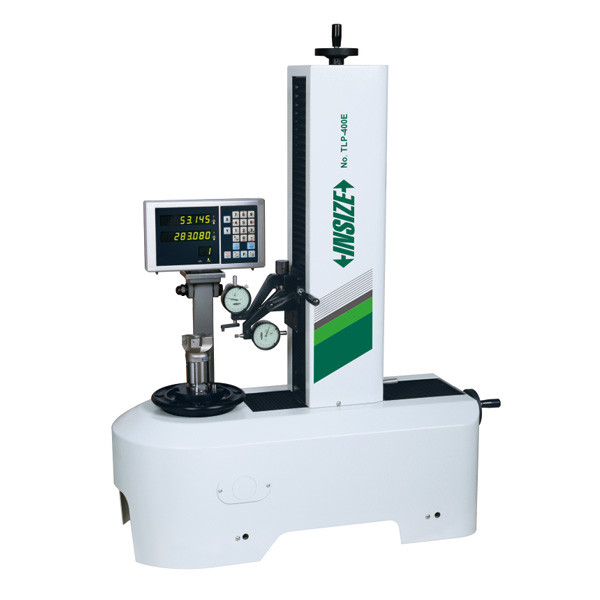

Insize TLP-400E – Tool Presetter, Rotating Spindle
L. Dewitt's SKU #: TLP-400E | Mfr Part #: TLP-400EInsize TLP-400E is a tool presetter with a rotating spindle for measuring cutting-tool diameter (up to 11.81IN) and height (2.36-15.74IN) off the machine, with .0002IN repeatability and .0004IN accuracy. Absolute linear scales mean no re-zeroing after power off.
Key Features
- Max tool diameter (X axis) 11.81IN
- Height range (Z axis) 2.36-15.74IN
- Repeatability .0002IN
- Measuring accuracy .0004IN
- Rotating spindle
- Absolute linear scales; no zero setting needed after power on/off
Technical Specifications
| Part Number | TLP-400E |
| Brand | Insize |
| Manufacturer Part Number | TLP-400E |
| Product Type | Tool Presetter, Rotating Spindle |
| Max Tool Diameter | 11.81IN |
| Height Range | 2.36-15.74IN |
| Repeatability | .0002IN |
| Accuracy | .0004IN |
| Scales | Absolute linear |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 397 lb |
| Package Dimensions | 37.4IN L x 27.5IN W x 47.2IN H |
| UPC/EAN | 6940561967487 |
| Sold As | 1 Each |
Choosing between options
- Basic model: TLP-300H (BT50 spindle, 2.36-11.81IN height, .0008IN accuracy).
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and your tool holder taper and largest tool size — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
TLP-400E |
Product Family: |
Measuring Tool Sets |
Supplier Category Code: |
C |
EAN: |
6940561967487 |
Package Weight: |
397 lb |
Package Length: |
37.4 in |
Package Width: |
27.5 in |
Package Height: |
47.2 in |
Feature 1: |
Maximum tool diameter (X axis) 11.81' DIA. |
Feature 2: |
Height measuring range (Z axis) 2.36~15.74' |
Feature 3: |
Repeatability .0002' |
Feature 4: |
Measuring accuracy .0004' |
Feature 5: |
Absolute linear scales, zero setting is not needed after power on and off |
