Insize TLP-300H – Tool Presetter, Basic Type
L. Dewitt's SKU #: TLP-300H | Mfr Part #: TLP-300HInsize TLP-300H is a basic tool presetter with a BT50 spindle holder for measuring cutting-tool diameter (up to 11.81IN) and height (2.36-11.81IN) off the machine, with .0002IN repeatability.
Key Features
- Max tool diameter (X axis) 11.81IN
- Height range (Z axis) 2.36-11.81IN
- Repeatability .0002IN
- Measuring accuracy .0008IN
- Linear scale resolution .0002IN
- Dial indicator graduation 0.01MM
- BT50 spindle holder
Technical Specifications
| Part Number | TLP-300H |
| Brand | Insize |
| Manufacturer Part Number | TLP-300H |
| Product Type | Tool Presetter, Basic Type |
| Max Tool Diameter | 11.81IN |
| Height Range | 2.36-11.81IN |
| Repeatability | .0002IN |
| Accuracy | .0008IN |
| Scale Resolution | .0002IN |
| Indicator Graduation | 0.01MM |
| Spindle | BT50 |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 220.46 lb |
| Package Dimensions | 27.56IN L x 18.9IN W x 31.5IN H |
| UPC/EAN | 6928640376443 |
| Sold As | 1 Each |
What you'll also need

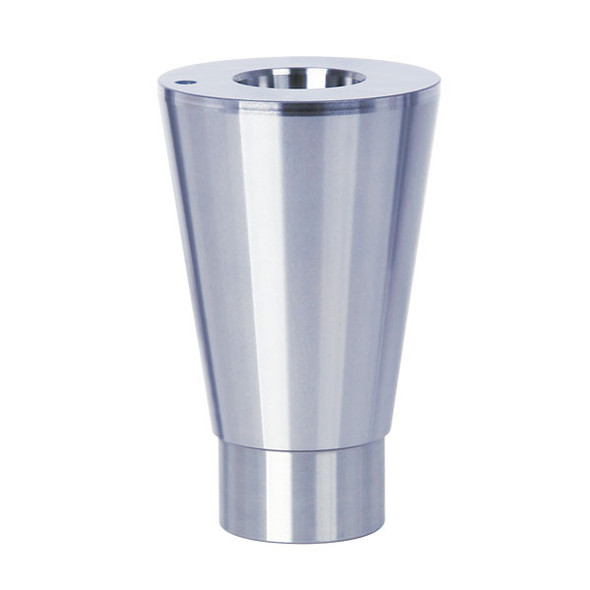

- Spindle converters for other tool holder tapers: TLP-300H-C1 and TLP-300H-C2
Choosing between options
- Presetting BT30 or BT40 holders? Add converter TLP-300H-C1 (BT50/BT30) or TLP-300H-C2 (BT50/BT40).
- Need more height and tighter accuracy? TLP-400E has a rotating spindle, 2.36-15.74IN height range, .0004IN accuracy and absolute scales.
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and your tool holder taper (BT30, BT40, BT50) and largest tool size — we reply the same day.
