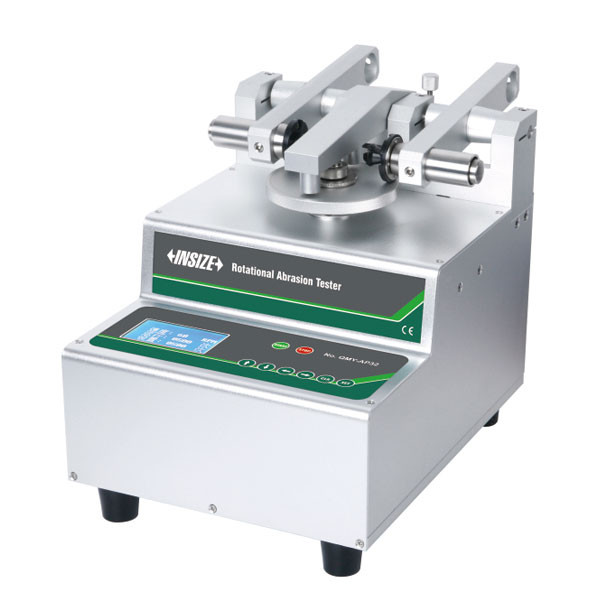

Insize QMY-AP32-U – Rotational Abrasion Tester
L. Dewitt's SKU #: QMY-AP32-U | Mfr Part #: QMY-AP32-UInsize QMY-AP32-U is a rotational (rotary platform) abrasion tester for flat paint films, running a 3.94IN DIA sample under abrasive wheels at selectable speed and load. It complies with ISO 7784-2, ISO 9352, GB/T1768, ASTM D3884 and ASTM D1175.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Platform speed 60±2 or 72±2 r/min (selectable)
- Load 500g/1.1 lb, 750g/1.65 lb or 1000g/2.2 lb (selectable)
- Sample size 100MM/3.94IN DIA
- Abrasive wheel OD 2IN ±.0039IN, thickness 0.5IN ±.0039IN
- Rotation counter 0-9999
- For flat paint film
- Complies with ISO 7784-2, ISO 9352, GB/T1768, ASTM D3884, ASTM D1175
Technical Specifications
| Part Number | QMY-AP32-U |
| Brand | Insize |
| Manufacturer Part Number | QMY-AP32-U |
| Product Type | Rotational Abrasion Tester |
| Platform Speed | 60±2 / 72±2 r/min |
| Load | 500g / 750g / 1000g (1.1 / 1.65 / 2.2 lb) |
| Sample Size | 100MM/3.94IN DIA |
| Wheel Size | 2IN ±.0039IN OD x 0.5IN ±.0039IN |
| Counter | 0-9999 |
| Standards | ISO 7784-2, ISO 9352, GB/T1768, ASTM D3884, ASTM D1175 |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 44.09 lb |
| Package Dimensions | 10.24IN L x 16.14IN W x 11.02IN H |
| UPC/EAN | 6940561937848 |
| Sold As | 1 Each |
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the test standard you follow and your power supply — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
QMY-AP32-U |
Product Family: |
Testing and Specialty Instruments |
Supplier Category Code: |
B |
EAN: |
6940561937848 |
Package Weight: |
44.09 lb |
Package Length: |
10.24 in |
Package Width: |
16.14 in |
Package Height: |
11.02 in |
Feature 1: |
Plateform rotary speed, 60±2 r/min, 72±2 r/min (selectable) |
Feature 2: |
Load weight 500g/1.1lb, 750g/1.65lb, 1000g/2.2lb(selectable) |
Feature 3: |
Sample size 100mm/3.94' DIA |
Feature 4: |
Grinding wheel external diameter(2±.0039)', thickness (0.5±.0039)' |
Feature 5: |
Counting range of plateform rotation 0~9999 times |
Feature 6: |
To test flat paint film |
Feature 7: |
Comply with ISO 7784-2, ISO 9352, GB/T1768, ASTM D3884, ASTM D1175 standards. |
