Description
Insize ISF-S500-U – Digital Spring Tester, 112lbf

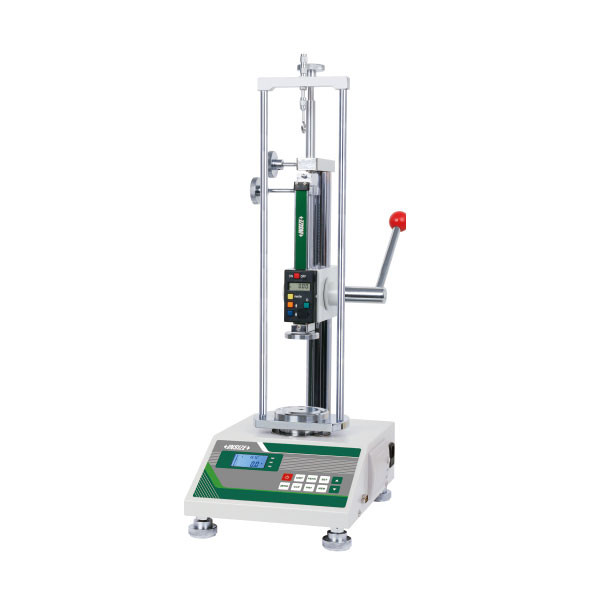

L. Dewitt's SKU #: ISF-S500-U | Mfr Part #: ISF-S500-UInsize ISF-S500-U is a 112lbf digital spring tester that measures spring force against compressed length, with .01lbf force resolution and a 3.7IN digital length scale reading to .0005IN.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Capacity 112lbf; force resolution .01lbf
- Measuring range of force 5%-100% of maximum load
- Digital length scale 3.7IN, resolution .0005IN
- Disk diameter 1.9IN
- Peak hold and automatic release
- Upper and lower limits with red/green indicator and buzzer
- Units lbf, N, kgf
Technical Specifications
| Part Number | ISF-S500-U |
| Brand | Insize |
| Manufacturer Part Number | ISF-S500-U |
| Product Type | Digital Spring Tester |
| Capacity | 112lbf |
| Force Resolution | .01lbf |
| Force Measuring Range | 5%-100% of max load |
| Length Scale Range | 3.7IN |
| Length Scale Resolution | .0005IN |
| Disk Diameter | 1.9IN DIA |
| Units | lbf, N, kgf |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 48.5 lb |
| Package Dimensions | 11.81IN L x 9.25IN W x 24.41IN H |
| UPC/EAN | 6940561961362 |
| Sold As | 1 Each |
Other sizes & versions in this series
- ISF-S30-U – 6lbf
- ISF-S50-U – 11lbf
- ISF-S100-U – 22lbf
- ISF-S200-U – 44lbf
- ISF-S300-U – 67lbf
- ISF-S1000-U – 224lbf
- ISF-S2000-U – 450lbf
- ISF-S5000-U – 1124lbf
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the spring load range and spring size — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISF-S500-U |
Product Family: |
Indicators and Test Indicators |
Supplier Category Code: |
B |
EAN: |
6940561961362 |
Package Weight: |
48.5 lb |
Package Length: |
11.81 in |
Package Width: |
9.25 in |
Package Height: |
24.41 in |
Feature 1: |
Resolution .01lbf |
Feature 2: |
Range of digital scale 3.7' |
Feature 3: |
Resolution of digital scale .0005' |
Feature 4: |
Disk diameter 1.9' DIA |
Feature 5: |
Measuring range of force 5%~100% (maximum load) |
Feature 6: |
Peak hold and automatic release function |
Feature 7: |
Set upper and lower limits, red and green indicator and buzzer alarm |
Feature 8: |
Automatic conversion of three units: lbf, N, kgf |
