Description

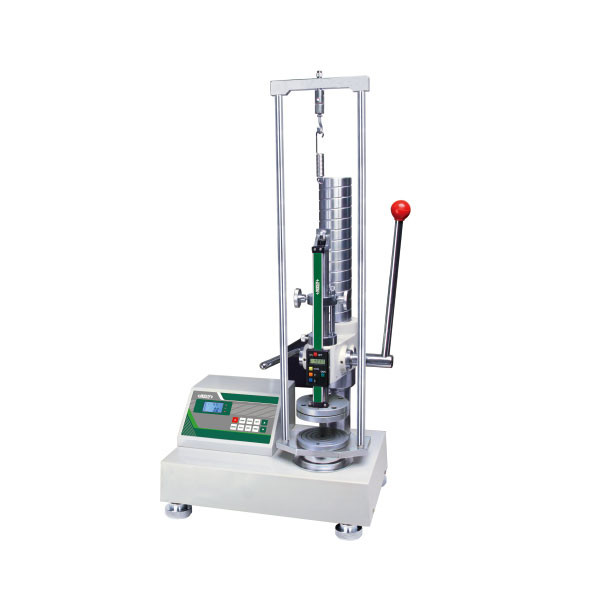

Insize ISF-S1000-U – Digital Spring Tester, 224lbf
L. Dewitt's SKU #: ISF-S1000-U | Mfr Part #: ISF-S1000-UInsize ISF-S1000-U is a 224lbf digital spring tester that measures spring force against compressed length, with .02lbf force resolution and a 5.9IN digital length scale reading to .0005IN.
Key Features
- Capacity 224lbf; force resolution .02lbf
- Measuring range of force 5%-100% of maximum load
- Digital length scale 5.9IN, resolution .0005IN
- Disk diameter 4.2IN
- Peak hold and automatic release
- Upper and lower limits with red/green indicator and buzzer
- Units lbf, N, kgf
Technical Specifications
| Part Number | ISF-S1000-U |
| Brand | Insize |
| Manufacturer Part Number | ISF-S1000-U |
| Product Type | Digital Spring Tester |
| Capacity | 224lbf |
| Force Resolution | .02lbf |
| Force Measuring Range | 5%-100% of max load |
| Length Scale Range | 5.9IN |
| Length Scale Resolution | .0005IN |
| Disk Diameter | 4.2IN DIA |
| Units | lbf, N, kgf |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 108.03 lb |
| Package Dimensions | 19.29IN L x 11.81IN W x 36.22IN H |
| UPC/EAN | 6940561961379 |
| Sold As | 1 Each |
Other sizes & versions in this series
- ISF-S30-U – 6lbf
- ISF-S50-U – 11lbf
- ISF-S100-U – 22lbf
- ISF-S200-U – 44lbf
- ISF-S300-U – 67lbf
- ISF-S500-U – 112lbf
- ISF-S2000-U – 450lbf
- ISF-S5000-U – 1124lbf
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the spring load range and spring size — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISF-S1000-U |
Product Family: |
Indicators and Test Indicators |
Supplier Category Code: |
B |
EAN: |
6940561961379 |
Package Weight: |
108.03 lb |
Package Length: |
19.29 in |
Package Width: |
11.81 in |
Package Height: |
36.22 in |
Feature 1: |
Resolution .02lbf |
Feature 2: |
Range of digital scale 5.9' |
Feature 3: |
Resolution of digital scale .0005' |
Feature 4: |
Disk diameter 4.2' DIA |
Feature 5: |
Measuring range of force 5%~100% (maximum load) |
Feature 6: |
Peak hold and automatic release function |
Feature 7: |
Set upper and lower limits, red and green indicator and buzzer alarm |
Feature 8: |
Automatic conversion of three units: lbf, N, kgf |
