Description

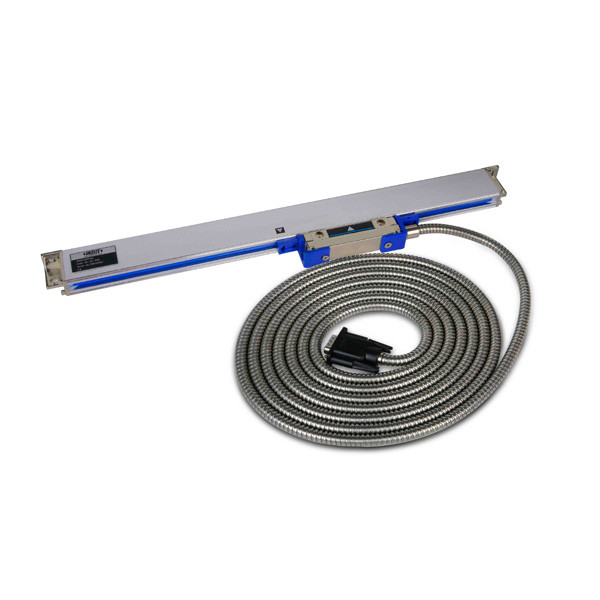

Insize ISL-A5-600 – Linear Scale, 24IN/600MM
L. Dewitt's SKU #: ISL-A5-600 | Mfr Part #: ISL-A5-600Insize ISL-A5-600 is a 24IN/600MM linear scale with .0002IN resolution for adding digital readout to a machine tool axis such as a mill or lathe.
Key Features
- Effective length 24IN/600MM
- Resolution .0002IN
- Accuracy ±(197 + 5L)μin, L = effective length in inches
- Max response speed 295FT/min
- Grating pitch 787μin; reference point pitch 1.97IN
- Cable length 140IN (for 2-38IN scales)
Technical Specifications
| Part Number | ISL-A5-600 |
| Brand | Insize |
| Manufacturer Part Number | ISL-A5-600 |
| Product Type | Linear Scale |
| Effective Length | 24IN / 600MM |
| Resolution | .0002IN |
| Accuracy | ±(197 + 5L)μin |
| Max Response Speed | 295FT/min |
| Grating Pitch | 787μin |
| Cable Length | 140IN |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 5.22 lb |
| Package Dimensions | 31.5IN L x 4.53IN W x 5.12IN H |
| UPC/EAN | 6928640321993 |
| Sold As | 1 Each |
What you'll also need
Choosing between options
- Need finer resolution? ISL-A1-600 is the same 24IN/600MM length at .00005IN resolution (max response speed 164FT/min).
- ISL-B5-600 is the same 24IN/600MM length and .0002IN resolution with a max response speed of 196FT/min (this scale: 295FT/min).
Other sizes & versions in this series
- ISL-A5-400 – 16IN/400MM
- ISL-A5-450 – 18IN/450MM
- ISL-A5-500 – 20IN/500MM
- ISL-A5-550 – 22IN/550MM
- ISL-A5-650 – 26IN/650MM
- ISL-A5-700 – 28IN/700MM
- ISL-A5-750 – 30IN/750MM
- ISL-A5-800 – 32IN/800MM
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and machine, axis travel and DRO model — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISL-A5-600 |
Product Family: |
Precision Measuring Tools |
Supplier Category Code: |
A |
EAN: |
6928640321993 |
Package Weight: |
5.22 lb |
Package Length: |
31.5 in |
Package Width: |
4.53 in |
Package Height: |
5.12 in |
Feature 1: |
Resolution .0002'. |
Feature 2: |
Max. response speed 295ft/min. |
Feature 3: |
Scale grating pitch 787μin. |
Feature 4: |
Scale reference point pitch 1.97'. |
Feature 5: |
Accuracy: ±(197+5L)μin, L is the effective length in inch. |
Feature 6: |
Cable length: 140' (L: 2-38'), 200' (L: 40-60'), 400' (L: 64-128'). |
