Description

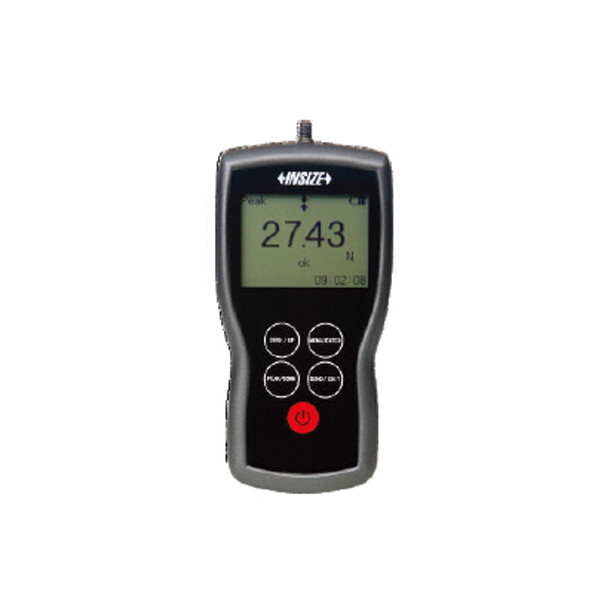

Insize ISF-DF20A – Digital Force Gage, High Resolution, 4.4lbf
L. Dewitt's SKU #: ISF-DF20A | Mfr Part #: ISF-DF20AInsize ISF-DF20A is a 4.4lbf high-resolution digital force gage with an internal sensor, reading to 0.001lbf with accuracy ±0.3% of capacity, for push and pull tests handheld or on a test stand.
Key Features
- Capacity 4.4lbf; resolution 0.001lbf
- Accuracy ±0.3% of load capacity
- Internal sensor
- Push and pull test; peak (max.) and tracking modes
- Low and high limits with judgement
- Units lbf, ozf, mN, N, gf, kgf
- 1000 memories
- Metal case with touch buttons; backlit LCD
- Automatic power off
Technical Specifications
| Part Number | ISF-DF20A |
| Brand | Insize |
| Manufacturer Part Number | ISF-DF20A |
| Product Type | Digital Force Gage, High Resolution |
| Capacity | 4.4lbf |
| Resolution | 0.001lbf |
| Accuracy | ±0.3% of load capacity |
| Sensor | Internal |
| Units | lbf, ozf, mN, N, gf, kgf |
| Memory | 1000 readings |
| Housing | Metal |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 4.41 lb |
| Package Dimensions | 12.99IN L x 11.42IN W x 3.74IN H |
| UPC/EAN | 6928640325977 |
| Sold As | 1 Each |
What you'll also need
- Test stand for repeatable push/pull tests: ISF-MT1K, ISF-V10D (vertical) or ISF-H20D (horizontal)
- Printer ISF-DF-PRINTER (optional)
Other sizes & versions in this series
- ISF-DF5A – 1.1lbf
- ISF-DF5KA – 1100lbf
- ISF-DF10A – 2.2lbf
- ISF-DF10KA – 2250lbf
- ISF-DF20KA – 4500lbf
- ISF-DF50A – 11lbf
- ISF-DF100A – 22lbf
- ISF-DF200A – 44lbf
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the force range you need and whether you need a test stand — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISF-DF20A |
Product Family: |
Bore and Inside Measurement |
Supplier Category Code: |
B |
EAN: |
6928640325977 |
Package Weight: |
4.41 lb |
Package Length: |
12.99 in |
Package Width: |
11.42 in |
Package Height: |
3.74 in |
Feature 1: |
Internal sensor. |
Feature 2: |
Resolution 0.001lbf. Accuracy ±0.3% (of load capacity ). |
Feature 3: |
Push and pull test. Peak (max.) and tracking mode. |
Feature 4: |
Units: lbf, ozf, mN, N, gf, kgf, Mpa (only for type B) |
Feature 5: |
Low and high limits with judgement. |
Feature 6: |
1000 memories. Automatic power off. |
Feature 7: |
Metal case, touch buttons. |
Feature 8: |
LCD display with backlight |
