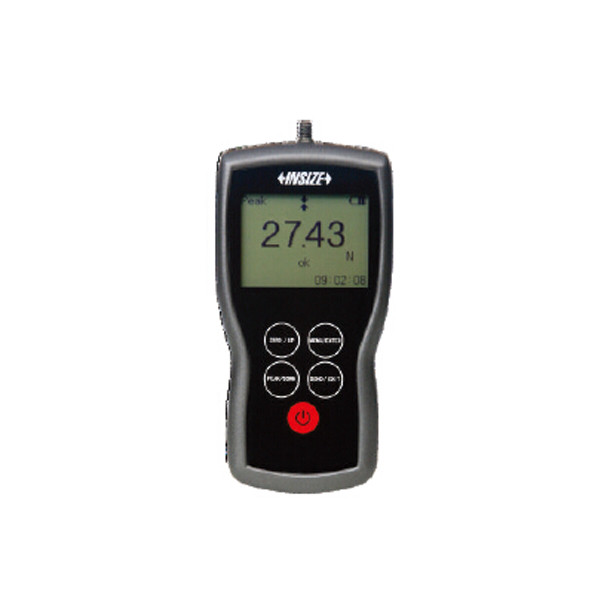

Insize ISF-DF100A – Digital Force Gage, High Resolution, 22lbf
L. Dewitt's SKU #: ISF-DF100A | Mfr Part #: ISF-DF100AInsize ISF-DF100A is a 22lbf high-resolution digital force gage with an internal sensor, reading to 0.005lbf with accuracy ±0.3% of capacity, for push and pull tests handheld or on a test stand.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Printer ISF-DF-PRINTER | Printer for Digital Force Gages | Add to cart |
| Test stand for repeatable push/pull tests: ISF-MT1K, ISF-V10D (vertical) or ISF-H20D (horizontal) | Choose yours | |
| Force gage test stand ISF-MT500 | Holds the gage for repeatable push and pull tests. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Capacity 22lbf; resolution 0.005lbf
- Accuracy ±0.3% of load capacity
- Internal sensor
- Push and pull test; peak (max.) and tracking modes
- Low and high limits with judgement
- Units lbf, ozf, mN, N, gf, kgf
- 1000 memories
- Metal case with touch buttons; backlit LCD
- Automatic power off
Technical Specifications
| Part Number | ISF-DF100A |
| Brand | Insize |
| Manufacturer Part Number | ISF-DF100A |
| Product Type | Digital Force Gage, High Resolution |
| Capacity | 22lbf |
| Resolution | 0.005lbf |
| Accuracy | ±0.3% of load capacity |
| Sensor | Internal |
| Units | lbf, ozf, mN, N, gf, kgf |
| Memory | 1000 readings |
| Housing | Metal |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 4.46 lb |
| Package Dimensions | 12.99IN L x 11.42IN W x 3.74IN H |
| UPC/EAN | 6928640325991 |
| Sold As | 1 Each |
What you'll also need
- Test stand for repeatable push/pull tests: ISF-MT1K, ISF-V10D (vertical) or ISF-H20D (horizontal)
- Printer ISF-DF-PRINTER (optional)
Choosing between options
- Standard-resolution alternative: ISF-1DF100 is a 22lbf digital force gage with 0.01lbf resolution and 500 memories.
Other sizes & versions in this series
- ISF-DF5KA – 1100lbf
- ISF-DF10A – 2.2lbf
- ISF-DF10KA – 2250lbf
- ISF-DF20A – 4.4lbf
- ISF-DF20KA – 4500lbf
- ISF-DF50A – 11lbf
- ISF-DF200A – 44lbf
- ISF-DF500A – 110lbf
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the force range you need and whether you need a test stand — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISF-DF100A |
Product Family: |
Bore and Inside Measurement |
Supplier Category Code: |
B |
EAN: |
6928640325991 |
Package Weight: |
4.46 lb |
Package Length: |
12.99 in |
Package Width: |
11.42 in |
Package Height: |
3.74 in |
Feature 1: |
Internal sensor. |
Feature 2: |
Resolution 0.005lbf. Accuracy ±0.3% (of load capacity ). |
Feature 3: |
Push and pull test. Peak (max.) and tracking mode. |
Feature 4: |
Units: lbf, ozf, mN, N, gf, kgf, Mpa (only for type B) |
Feature 5: |
Low and high limits with judgement. |
Feature 6: |
1000 memories. Automatic power off. |
Feature 7: |
Metal case, touch buttons. |
Feature 8: |
LCD display with backlight |
