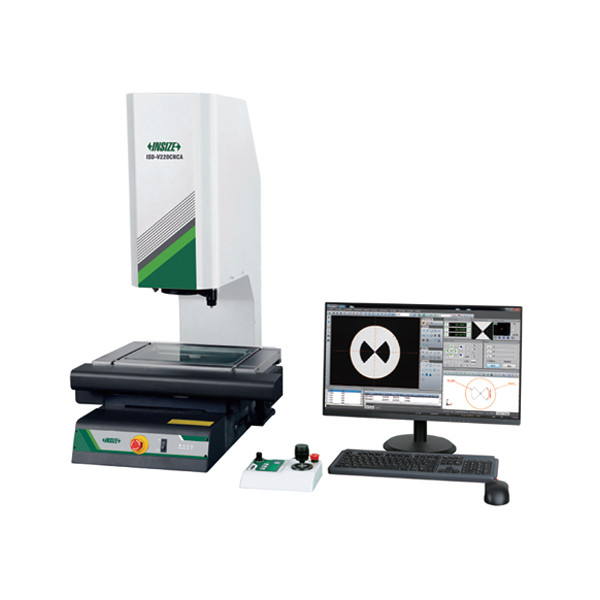

Insize ISD-V270HN-U – CNC Vision Measuring System, 10.63 x 6.69 x 11.81IN, Manual Zoom Lens
L. Dewitt's SKU #: ISD-V270HN-U | Mfr Part #: ISD-V270HN-UInsize ISD-V270HN-U is a CNC vision measuring system with a 10.63 x 6.69 x 11.81IN measuring range and manual zoom lens, 0.7X-4.5X zoom objective and color CCD camera, for automated non-contact measurement of part features. The computer is included.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Optional: ISD-V-PROBE probe, ISD-V-OB2X or ISD-V-OB05X auxiliary objective, ISD-V-LENS coaxial-light lens (factory mounted) | Choose yours |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Measuring range 10.63 x 6.69 x 11.81IN
- Stage size 19.69 x 12.99IN; glass stage 13.78 x 9.84IN
- Resolution .00002IN on X/Y/Z
- X/Y accuracy ≤(98.4+10L)μin, L = measuring length in inches
- X/Y repeatability .00008IN
- Zoom objective 0.7X-4.5X (manual zoom lens); working distance 3.62IN
- Magnification 20X-128X on a 19.5IN monitor
- Color CCD camera, 0.4M pixel; view field .07-.44IN diagonal
- Max workpiece height 6.30IN; max workpiece weight 66lb
- Windows 7/8/10; computer included
Technical Specifications
| Part Number | ISD-V270HN-U |
| Brand | Insize |
| Manufacturer Part Number | ISD-V270HN-U |
| Product Type | CNC Vision Measuring System, 10.63 x 6.69 x 11.81IN, Manual Zoom Lens |
| Measuring Range | 10.63 x 6.69 x 11.81IN |
| Stage Size | 19.69 x 12.99IN |
| Glass Stage Size | 13.78 x 9.84IN |
| Resolution | .00002IN |
| X/Y Accuracy | ≤(98.4+10L)μin |
| X/Y Repeatability | .00008IN |
| Objective | 0.7X-4.5X zoom, manual zoom lens |
| Working Distance | 3.62IN |
| Magnification | 20X-128X (19.5IN monitor) |
| Camera | Color CCD, 0.4M pixel |
| Max Workpiece Height | 6.30IN |
| Max Workpiece Weight | 66lb |
| Operating System | Windows 7/8/10 |
| Computer | Included |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 462.97 lb |
| Package Dimensions | 29.92IN L x 23.62IN W x 41.34IN H |
| UPC/EAN | 6974029775017 |
| Sold As | 1 Each |
What you'll also need
- Optional: ISD-V-PROBE probe, ISD-V-OB2X or ISD-V-OB05X auxiliary objective, ISD-V-LENS coaxial-light lens (factory mounted)
Choosing between options
- Want a motorized zoom with the same 10.63 x 6.69 x 11.81IN range? See ISD-V270ZHN-U. With 5.90IN Z: ISD-V270CNCA-U and ISD-V270ZA-U (motorized zoom).
