Insize ISD-V270CNCA-U – CNC Vision Measuring System, With Computer, Measuring Range 10.63x6.69x5.90IN

(No reviews yet) Write a Review

Tracked & insured shipping

Free Returns



30 Days Money Back Guarantee

SKU:
ISD-V270CNCA-U
UPC:
6940561933697
MPN:
ISD-V270CNCA-U
Availability:
Ships direct from Insize. Most items in stock; we confirm your ship date by email after you order.
Weight:
440.93 LBS
Width:
30.31 (in)
Height:
49.61 (in)
Depth:
38.98 (in)
Shipping:
Calculated at Checkout
$42,140.10

Sold Out

Frequently bought together:

Description

Insize ISD-V270CNCA-U – CNC Vision Measuring System, With Computer, Measuring Range 10.63x6.69x5.90IN

L. Dewitt's SKU #: ISD-V270CNCA-U  |  Mfr Part #: ISD-V270CNCA-U

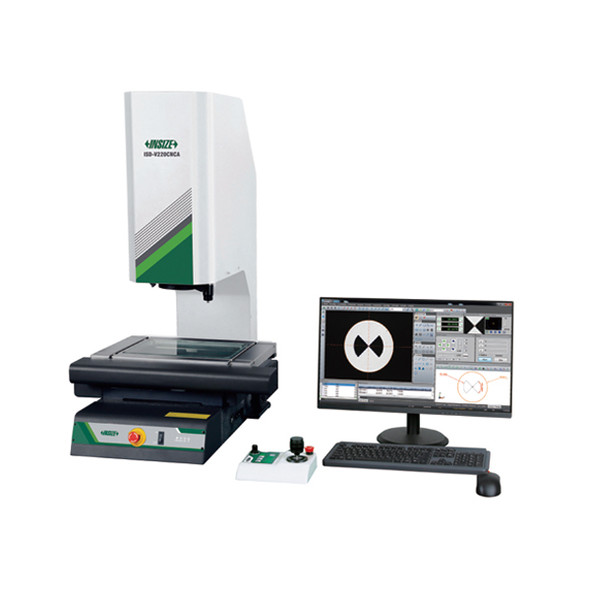

Insize ISD-V270CNCA-U is a CNC vision measuring system with a 10.63 x 6.69 x 5.90IN measuring range, 0.7X-4.5X zoom objective and color CCD camera, for automated non-contact measurement of part features. The computer is included.

Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Optional: ISD-V-PROBE probe, ISD-V-OB2X or ISD-V-OB05X auxiliary objective, ISD-V-LENS coaxial-light lens (factory mounted)Choose yours
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.

Key Features

  • Measuring range 10.63 x 6.69 x 5.90IN
  • Stage size 19.69 x 12.99IN; glass stage 13.78 x 9.84IN
  • Resolution .00002IN on X/Y/Z
  • X/Y accuracy ≤(98.4+10L)μin, L = measuring length in inches
  • X/Y repeatability .00008IN
  • Zoom objective 0.7X-4.5X; working distance 3.62IN
  • Magnification 20X-128X on a 19.5IN monitor
  • Color CCD camera, 0.4M pixel; view field .07-.44IN diagonal
  • Max workpiece height 6.30IN; max workpiece weight 66lb
  • Windows 7/8/10; computer included

Technical Specifications

Part NumberISD-V270CNCA-U
BrandInsize
Manufacturer Part NumberISD-V270CNCA-U
Product TypeCNC Vision Measuring System
Measuring Range10.63 x 6.69 x 5.90IN
Stage Size19.69 x 12.99IN
Glass Stage Size13.78 x 9.84IN
Resolution.00002IN
X/Y Accuracy≤(98.4+10L)μin
X/Y Repeatability.00008IN
Objective0.7X-4.5X zoom
Working Distance3.62IN
Magnification20X-128X (19.5IN monitor)
CameraColor CCD, 0.4M pixel
Max Workpiece Height6.30IN
Max Workpiece Weight66lb
Operating SystemWindows 7/8/10
ComputerIncluded
AvailabilityShips direct from Insize; most items in stock. Ship date confirmed by email after you order.
Shipping Weight440.93 lb
Package Dimensions38.98IN L x 30.31IN W x 49.61IN H
UPC/EAN6940561933697
Sold As1 Each
