Insize ISD-H320 – High-Definition Vision Measuring System, Measuring Range 12×8×6IN

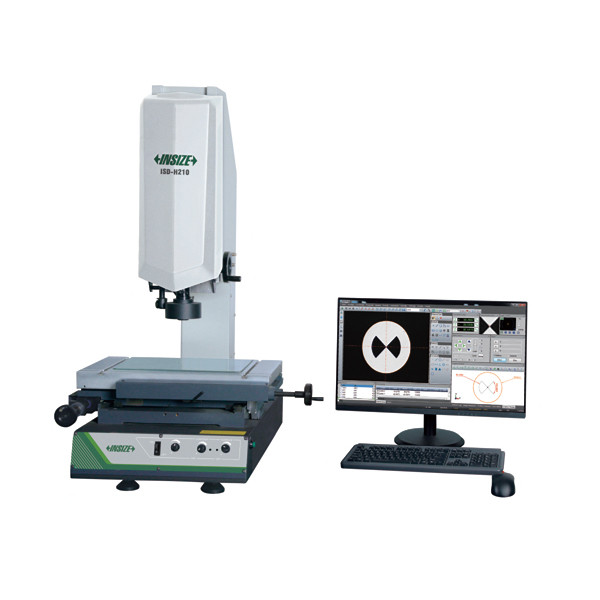

L. Dewitt's SKU #: ISD-H320 | Mfr Part #: ISD-H320Insize ISD-H320 is a high-definition vision measuring system with a 12 x 8 x 6IN measuring range and a 0.58X-7.5X zoom objective, for non-contact measurement of part features on screen. The computer is included.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Measuring range 12 x 8 x 6IN
- Stage size 19.69 x 12.99IN; glass stage 13.78 x 9.84IN
- Resolution .00002IN on X/Y/Z
- X/Y accuracy ≤(137.8+10L)μin, L = measuring length in inches
- X/Y repeatability .00008IN
- Zoom objective 0.58X-7.5X
- High-definition image with a large field of view
- Computer included
Technical Specifications
| Part Number | ISD-H320 |
| Brand | Insize |
| Manufacturer Part Number | ISD-H320 |
| Product Type | High-Definition Vision Measuring System |
| Measuring Range | 12 x 8 x 6IN |
| Stage Size | 19.69 x 12.99IN |
| Glass Stage Size | 13.78 x 9.84IN |
| Resolution | .00002IN |
| X/Y Accuracy | ≤(137.8+10L)μin |
| X/Y Repeatability | .00008IN |
| Objective | 0.58X-7.5X zoom |
| Computer | Included |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 352.74 lb |
| Package Dimensions | 35.43IN L x 29.53IN W x 41.34IN H |
| UPC/EAN | 6940561908657 |
| Sold As | 1 Each |
