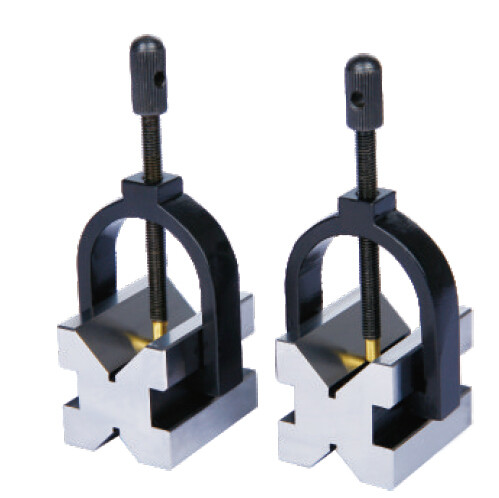

Insize 6896-14 – V-Block Set, 5.5x2.8x5.5IN, Pair

(No reviews yet) Write a Review

Tracked & insured shipping

Free Returns



30 Days Money Back Guarantee

SKU:
6896-14
UPC:
6928640320866
MPN:
6896-14
Availability:
Ships direct from Insize. Most items in stock; we confirm your ship date by email after you order.
Weight:
44.81 LBS
Width:
10.83 (in)
Height:
8.46 (in)
Depth:
11.61 (in)
Shipping:
Calculated at Checkout
$1,561.80

Sold Out

Frequently bought together:

Description

Insize 6896-14 – V-Block Set, 5.5x2.8x5.5IN, Pair

L. Dewitt's SKU #: 6896-14  |  Mfr Part #: 6896-14

Insize 6896-14 is a pair of 5.5 x 2.8 x 5.5IN hardened alloy steel V-blocks for holding shafts and round parts during inspection and machining. Squareness of the V grooves to the front and back sides is 197μin.

Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Magnetic stand 6201-60Holds the indicator on the setup.Add to cart
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.

Key Features

  • Holds cylindrical workpieces for inspection and machining
  • Alloy steel, hardened to HRC60±2
  • Squareness of both V grooves to front and back sides: 197μin
  • Two V grooves: top groove for large shafts, bottom groove for small shafts
  • Two V-blocks per set

Technical Specifications

Part Number6896-14
BrandInsize
Manufacturer Part Number6896-14
Product TypeV-Block Set
Size5.5 x 2.8 x 5.5IN
MaterialAlloy steel
HardnessHRC60±2
Squareness (V to front/back)197μin
V GroovesTop (large shafts) and bottom (small shafts)
Pieces2
AvailabilityShips direct from Insize; most items in stock. Ship date confirmed by email after you order.
Shipping Weight44.81 lb
Package Dimensions11.61IN L x 10.83IN W x 8.46IN H
UPC/EAN6928640320866
Sold As1 Set (2 V-blocks)

Choosing between options

  • Want a non-metallic block for inspection? 6897-1 is a granite V-block pair, 2.8 x 2.0 x 2.8IN.
  • Want magnetic hold-down? 6890-702 is a magnetic V-block (not hardened) for inspection and machining.

Other sizes & versions in this series

Request a Quote

Need volume pricing or help matching the right Insize part?

Send the part number, quantity and workpiece diameter range — we reply the same day.

Contact Information

Authorized Insize distributor

📍  Nationwide shipping | Live Oak, TX

📞  (210) 494-1997

✉  [email protected]

View AllClose

Additional Information

Brand:
Insize
Manufacturer Part Number:
6896-14
Product Family:
Measuring Tool Sets
Supplier Category Code:
A
EAN:
6928640320866
Package Weight:
44.81 lb
Package Length:
11.61 in
Package Width:
10.83 in
Package Height:
8.46 in
Feature 1:
Squareness of both V grooves to front and back sides: 197μin
Feature 2:
Hold cylindrical workpieces for inspection and machining.
Feature 3:
Two V-blocks per set.
Feature 4:
Made of alloy steel.
Feature 5:
Hardened to HRC60±2.
Feature 6:
V groove on the top for large shafts.
Feature 7:
V groove on the bottom for small shafts (except 6896-10).
