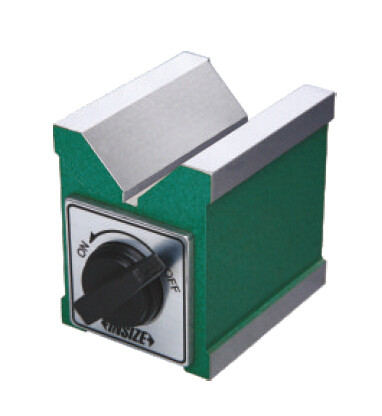

Insize 6890-702 – Magnetic V-Block, 2.8x2.4x2.9IN

(No reviews yet) Write a Review

Tracked & insured shipping

Free Returns



30 Days Money Back Guarantee

SKU:
6890-702
UPC:
6928640320613
MPN:
6890-702
Availability:
Ships direct from Insize. Most items in stock; we confirm your ship date by email after you order.
Weight:
4.44 LBS
Width:
6.10 (in)
Height:
3.94 (in)
Depth:
6.69 (in)
Shipping:
Calculated at Checkout
$146.30

Sold Out

Frequently bought together:

Description

Insize 6890-702 – Magnetic V-Block, 2.8x2.4x2.9IN

L. Dewitt's SKU #: 6890-702  |  Mfr Part #: 6890-702

Insize 6890-702 is a single 2.8 x 2.4 x 2.9IN magnetic V-block that holds cylindrical workpieces for inspection and machining. It is not hardened, and its magnetic force drops when it sits on a steel or iron surface, so set it on a non-ferrous base.

Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Magnetic stand 6201-60Holds the indicator on the setup.Add to cart
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.

Key Features

  • Holds cylindrical workpieces for inspection and machining
  • Squareness of V groove to back side: 394μin
  • Parallelism of V groove to top, bottom, left and right sides: 394μin
  • Not hardened
  • Magnetic force is reduced on a steel or iron surface
  • Supplied as a single piece

Technical Specifications

Part Number6890-702
BrandInsize
Manufacturer Part Number6890-702
Product TypeMagnetic V-Block
Size2.8 x 2.4 x 2.9IN
Squareness (V to back)394μin
Parallelism (V to sides)394μin
HardenedNo
Pieces1
AvailabilityShips direct from Insize; most items in stock. Ship date confirmed by email after you order.
Shipping Weight4.44 lb
Package Dimensions6.69IN L x 6.1IN W x 3.94IN H
UPC/EAN6928640320613
Sold As1 Each

Choosing between options

  • Need hardened blocks? The 6896 V-block sets are alloy steel hardened to HRC60±2, e.g. 6896-12 (3.1x2.5x2.5IN pair).
  • For grinding and drilling square and round work: 6898-100 magnetic rectangular blocks, hardened to HRC58-62, magnetic on three sides, sold as a matched pair.

Request a Quote

Need volume pricing or help matching the right Insize part?

Send the part number, quantity and workpiece diameter and whether you machine on it or only inspect — we reply the same day.

Contact Information

Authorized Insize distributor

📍  Nationwide shipping | Live Oak, TX

📞  (210) 494-1997

✉  [email protected]

View AllClose

Additional Information

Brand:
Insize
Manufacturer Part Number:
6890-702
Product Family:
Testing and Specialty Instruments
Supplier Category Code:
A
EAN:
6928640320613
Package Weight:
4.44 lb
Package Length:
6.69 in
Package Width:
6.1 in
Package Height:
3.94 in
Feature 1:
Hold cylindrical workpieces for inspection and machining.
Feature 2:
Supplied in single piece.
Feature 3:
Not hardened.
Feature 4:
Not suitable for steel or iron surface, otherwise the magnetic force will be reduced.
Feature 5:
Squareness of V groove to back side: 394μin
Feature 6:
Parallelism of V groove to top, bottom, left and right sides: 394μin
