Insize

Insize 6803-1 – V-Block Set, Pair, 1.0x.8x.8IN

(No reviews yet) Write a Review

Tracked & insured shipping

Free Returns



30 Days Money Back Guarantee

SKU:
6803-1
UPC:
6928640355097
MPN:
6803-1
Availability:
Ships direct from Insize. Most items in stock; we confirm your ship date by email after you order.
Weight:
4.97 LBS
Width:
6.30 (in)
Height:
3.94 (in)
Depth:
7.87 (in)
Shipping:
Calculated at Checkout
$464.88

Sold Out

Frequently bought together:

Description

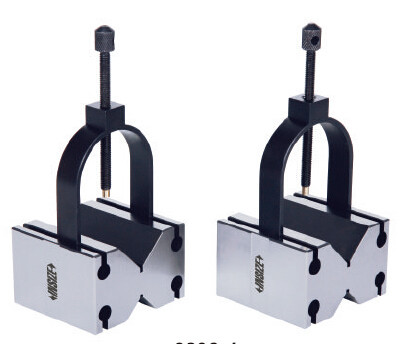

Insize 6803-1 – V-Block Set, Pair, 1.0x.8x.8IN

L. Dewitt's SKU #: 6803-1  |  Mfr Part #: 6803-1

Insize 6803-1 is a pair of 1.0 x .8 x .8IN hardened alloy steel V-blocks for holding round work during inspection and machining, with a V groove on top for large shafts and one on the bottom for small shafts.

Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Magnetic stand 6201-60Holds the indicator on the setup.Add to cart
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.

Key Features

  • Size 1.0 x .8 x .8IN
  • V groove on top for large shafts; V groove on bottom for small shafts
  • Alloy steel, hardened to HRC60±2
  • Two V-blocks per set

Technical Specifications

Part Number6803-1
BrandInsize
Manufacturer Part Number6803-1
Product TypeV-Block Set, Pair
Size1.0 x .8 x .8IN
MaterialAlloy steel
HardnessHRC60±2
AvailabilityShips direct from Insize; most items in stock. Ship date confirmed by email after you order.
Shipping Weight4.97 lb
Package Dimensions7.87IN L x 6.3IN W x 3.94IN H
UPC/EAN6928640355097
Sold As1 Set (2 V-blocks)

Choosing between options

  • Larger pair: 6803-2 (2.0 x 1.6 x 1.6IN).

Other sizes & versions in this series

  • 6803-2 – 2.0x1.6x1.6IN, Pair

Request a Quote

Need volume pricing or help matching the right Insize part?

Send the part number, quantity and block size and the shaft diameters you hold — we reply the same day.

Contact Information

Authorized Insize distributor

📍  Nationwide shipping | Live Oak, TX

📞  (210) 494-1997

✉  [email protected]

View AllClose

Additional Information

Brand:
Insize
Manufacturer Part Number:
6803-1
Product Family:
Measuring Tool Sets
Supplier Category Code:
A
EAN:
6928640355097
Package Weight:
4.97 lb
Package Length:
7.87 in
Package Width:
6.3 in
Package Height:
3.94 in
Feature 1:
Hold cylindrical workpieces for inspection and machining.
Feature 2:
Two V-blocks per set.
Feature 3:
Made of alloy steel.
Feature 4:
Hardened to HRC60±2.
Feature 5:
V groove on the top for large shafts.
Feature 6:
V groove on the bottom for small shafts.
