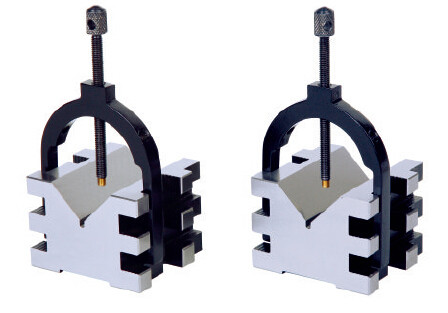

Insize 6802-1 – V-Block Set, Pair, 2.6x2.8x2.0IN
L. Dewitt's SKU #: 6802-1 | Mfr Part #: 6802-1Insize 6802-1 is a pair of 2.6x2.8x2.0IN hardened alloy steel V-blocks that hold cylinders from .20-1.97IN DIA, or rectangular work up to 1.38IN thick, for inspection and machining.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Magnetic stand 6201-60 | Holds the indicator on the setup. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Size 2.6 x 2.8 x 2.0IN
- Holds cylinders .20-1.97IN DIA
- Holds rectangular workpieces up to 1.38IN thick
- Alloy steel, hardened to HRC60±2
- Two V-blocks per set
Technical Specifications
| Part Number | 6802-1 |
| Brand | Insize |
| Manufacturer Part Number | 6802-1 |
| Product Type | V-Block Set, Pair |
| Size | 2.6 x 2.8 x 2.0IN |
| Cylinder Capacity | .20-1.97IN DIA |
| Rectangular Capacity | ≤1.38IN thick |
| Material | Alloy steel |
| Hardness | HRC60±2 |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 7.23 lb |
| Package Dimensions | 8.27IN L x 6.3IN W x 5.51IN H |
| UPC/EAN | 6928640320897 |
| Sold As | 1 Set (2 V-blocks) |
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the part diameters you hold — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
6802-1 |
Product Family: |
Measuring Tool Sets |
Supplier Category Code: |
A |
EAN: |
6928640320897 |
Package Weight: |
7.23 lb |
Package Length: |
8.27 in |
Package Width: |
6.3 in |
Package Height: |
5.51 in |
Feature 1: |
Hold cylindrical or rectangular workpieces for inspection and machining. |
Feature 2: |
Two V-blocks per set. |
Feature 3: |
Made of alloy steel. |
Feature 4: |
Hardened to HRC60±2. |
Feature 5: |
Applicable for cylinder with diameter (d): .20 - 1.97' DIA. |
Feature 6: |
Applicable for rectangular workpieces with thickness: ≤1.38'. |
