Description

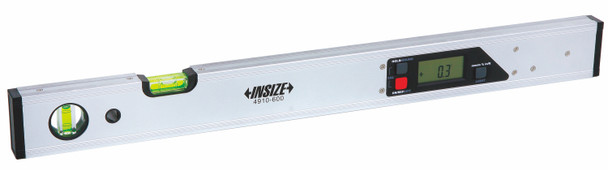

Insize 4910-600 – Digital Level and Slope Meter, 0-360°(90 °×4)
L. Dewitt's SKU #: 4910-600 | Mfr Part #: 4910-600Insize 4910-600 is a digital level and slope meter reading 0-360° (4 x 90°) on an aluminum frame with a magnetic bottom, with buzzer alarm and conversion function, for checking level, slope and angles between surfaces.
Key Features
- Range 0-360° (90° x 4)
- Works as a level and slope meter; measures the angle between two separate surfaces
- Transverse and longitudinal vials
- Aluminum frame with magnetic bottom
- Zero reference stored in the chip; no re-zeroing after battery change
- Display flips when the level is upside down
- Absolute and incremental measurement, reading hold, backlight
- Units: mm/m, %, in/ft
- Two AAA batteries, automatic power off
- Buzzer alarm and conversion function
Technical Specifications
| Part Number | 4910-600 |
| Brand | Insize |
| Manufacturer Part Number | 4910-600 |
| Product Type | Digital Level and Slope Meter |
| Range | 0-360° (90° x 4) |
| Units | mm/m, %, in/ft |
| Battery | 2 x AAA |
| Base | Magnetic |
| Frame | Aluminum |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 1.6 lb |
| Package Dimensions | 24.8IN L x 4.33IN W x 1.57IN H |
| UPC/EAN | 6928640325007 |
| Sold As | 1 Each |
Choosing between options
- No buzzer or conversion needed? 4910-400 has the same 0-360° range (accuracy ±0.2°) without them.
Other sizes & versions in this series
- 4910-400 – With transverse and longitudinal vials; Aluminum frame
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the units you read in and whether you need the buzzer alarm — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
4910-600 |
Product Family: |
Squares, Levels, and Angle Measurement |
Supplier Category Code: |
A |
EAN: |
6928640325007 |
Package Weight: |
1.6 lb |
Package Length: |
24.8 in |
Package Width: |
4.33 in |
Package Height: |
1.57 in |
Feature 1: |
With transverse and longitudinal vials. |
Feature 2: |
Used as level and slope meter to measure the angle of two separate surfaces |
Feature 3: |
Aluminum frame. |
Feature 4: |
Magnetic bottom. |
Feature 5: |
The sea level is permanently set inside the chip, zero setting is not needed when batteries are replaced. |
Feature 6: |
Buttons: ON/OFF, absolute and incremental measurement, keep the reading, buzzer alarm(not for 4910-400), unit (mm/m, %, in/ft), conversion(not for 4910-400), backlight |
Feature 7: |
The display flips over when the bottom faces up |
Feature 8: |
Two AAA batteries. Automatic power off. |
