Description

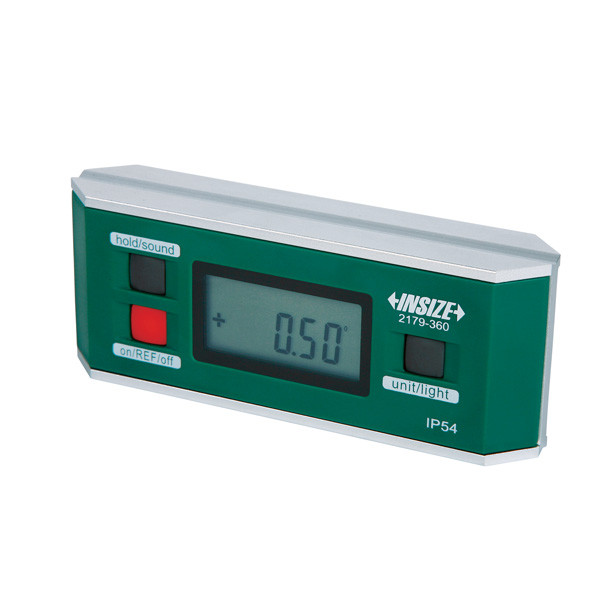

Insize 2179-360 – Digital Level and Protractor, IP54, 0-360°(90°×4)
L. Dewitt's SKU #: 2179-360 | Mfr Part #: 2179-360Insize 2179-360 is an IP54 digital level and protractor covering 0-360° (90°×4) at 0.05° resolution, with a magnetic V-grooved bottom for flat surfaces and shafts.
Key Features
- Range 0-360° (90°×4), resolution 0.05°
- IP54 dust/waterproof
- Aluminum frame
- Magnetic bottom with V-groove for shafts
- Level reference set in the chip; no zero setting needed after battery change
- Buttons: ON/OFF, absolute/incremental, hold, buzzer alarm, unit (in/ft, %, mm/m), backlight
- Two AAA batteries; auto power off
Technical Specifications
| Part Number | 2179-360 |
| Brand | Insize |
| Manufacturer Part Number | 2179-360 |
| Product Type | Digital Level and Protractor, IP54 |
| Range | 0-360° (90°×4) |
| Resolution | 0.05° |
| Protection Rating | IP54 |
| Frame | Aluminum, magnetic V-groove bottom |
| Battery | 2 x AAA |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 0.76 lb |
| Package Dimensions | 7.09IN L x 2.64IN W x 1.97IN H |
| UPC/EAN | 6928640324871 |
| Sold As | 1 Each |
Choosing between options
- Wetter conditions: 2175-360 is the IP67 version with rubber end caps.
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the angle range and resolution you need — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2179-360 |
Product Family: |
Squares, Levels, and Angle Measurement |
Supplier Category Code: |
A |
EAN: |
6928640324871 |
Package Weight: |
0.76 lb |
Package Length: |
7.09 in |
Package Width: |
2.64 in |
Package Height: |
1.97 in |
Feature 1: |
Resolution 0.05°/.125in/ft |
Feature 2: |
IP54 dust/waterproof. |
Feature 3: |
Aluminum frame. |
Feature 4: |
Magnetic bottom with V-groove for shafts. |
Feature 5: |
The sea level is permanently set inside the chip, zero setting is not needed when batteries are replaced. |
Feature 6: |
Buttons: ON/OFF, absolute and incremental measurement, keep the reading, buzzer alarm, unit (in/ft, %, mm/m), backlight. |
Feature 7: |
Two AAA batteries. |
Feature 8: |
Automatic power off. |
