Insize 4843-1E – Drill Point Gage

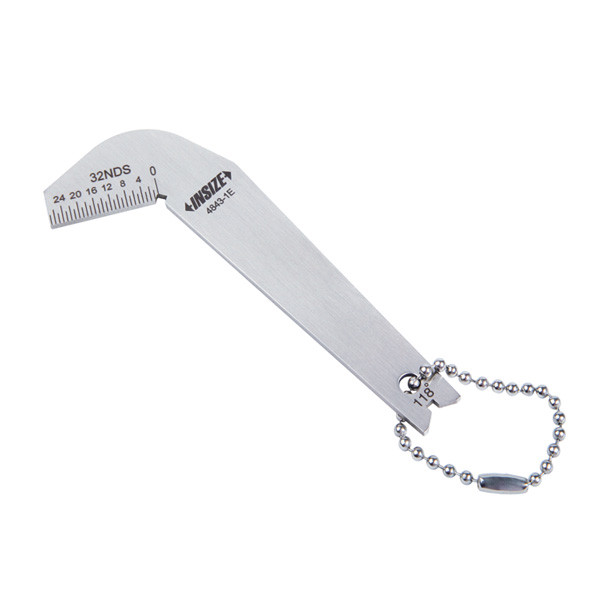

L. Dewitt's SKU #: 4843-1E | Mfr Part #: 4843-1EInsize 4843-1E is a stainless steel drill point gage for 118° twist drills, used to check that the point is centered on the drill body after grinding.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- For twist drills with a 118° point angle
- Checks whether the tip center is concentric with the drill body
- Stainless steel
Technical Specifications
| Part Number | 4843-1E |
| Brand | Insize |
| Manufacturer Part Number | 4843-1E |
| Product Type | Drill Point Gage |
| Point Angle | 118° |
| Material | Stainless steel |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 0.05 lb |
| Package Dimensions | 4.33IN L x 0.39IN W x 0.39IN H |
| UPC/EAN | 6928640379420 |
| Sold As | 1 Each |
Choosing between options
- Other point angles: 4842-1 checks 60° to 160° drill angles.
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and drill point angle — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
4843-1E |
Product Family: |
Gages and Reference Tools |
Supplier Category Code: |
A |
EAN: |
6928640379420 |
Package Weight: |
0.05 lb |
Package Length: |
4.33 in |
Package Width: |
0.39 in |
Package Height: |
0.39 in |
Feature 1: |
For twist drills with 118° angle, to check if the center of tip is concentric with the drill body |
Feature 2: |
Made of stainless steel |
