Insize 4786-1E – Concentricity Gage

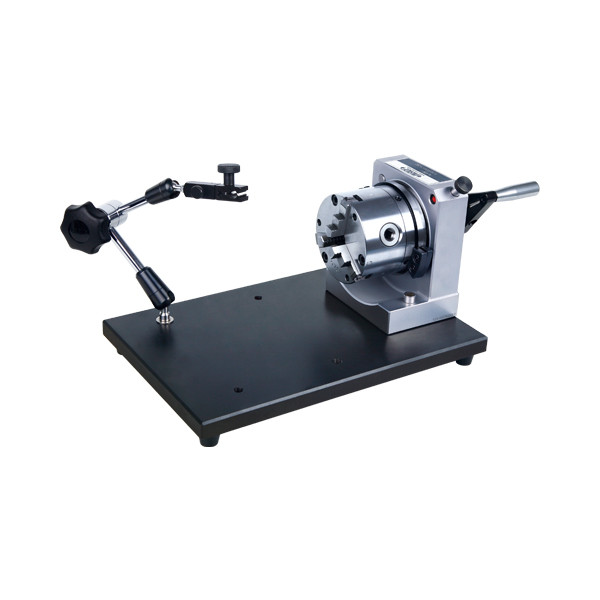

L. Dewitt's SKU #: 4786-1E | Mfr Part #: 4786-1EInsize 4786-1E is a concentricity gage that checks both inside diameters (.945-2.520IN) and outside diameters (.079-2.756IN), accurate to .0003IN. A dial test indicator (sold separately) reads the result.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Please note: Indicator not included. Order a dial test indicator separately.
Key Features
- Inside diameter range .945-2.520IN
- Outside diameter range .079-2.756IN
- Accuracy .0003IN
Technical Specifications
| Part Number | 4786-1E |
| Brand | Insize |
| Manufacturer Part Number | 4786-1E |
| Product Type | Concentricity Gage |
| Inside Diameter Range | .945-2.520IN |
| Outside Diameter Range | .079-2.756IN |
| Accuracy | .0003IN |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 55.12 lb |
| Package Dimensions | 19.29IN L x 11.81IN W x 7.87IN H |
| UPC/EAN | 6928640395116 |
| Sold As | 1 Each |
What you'll also need
- Dial test indicator (optional accessory, sold separately)
Choosing between options
- Outside diameters only, tighter accuracy: 4726-1E (.118-1.575IN, accuracy .00008IN).
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and part inside and outside diameters — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
4786-1E |
Product Family: |
Indicators and Test Indicators |
Supplier Category Code: |
B |
EAN: |
6928640395116 |
Package Weight: |
55.12 lb |
Package Length: |
19.29 in |
Package Width: |
11.81 in |
Package Height: |
7.87 in |
Feature 1: |
Applicable inside diameter .945' DIA~2.520' DIA |
Feature 2: |
Applicable outside diameter .079' DIA~2.756' DIA |
Feature 3: |
Accuracy .0003'. |
Feature 4: |
Optional accessory: dial test indicator. |
