Description
Insize 4804-8E – Radius Gage Set, 9/16IN–1IN

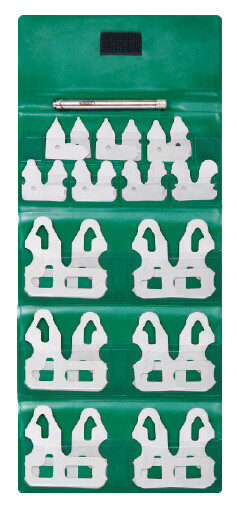

L. Dewitt's SKU #: 4804-8E | Mfr Part #: 4804-8EInsize 4804-8E is an 8-leaf radius gage set covering 9/16-1IN. Each leaf has 3 concave and 2 convex gaging surfaces for checking inside and outside radii; supplied in a case, without a handle.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 9/16-1IN
- 8 leaves
- Each leaf: 3 concave and 2 convex gaging surfaces
- Accuracy ±.0025IN
- Without handle, in case
Technical Specifications
| Part Number | 4804-8E |
| Brand | Insize |
| Manufacturer Part Number | 4804-8E |
| Product Type | Radius Gage Set |
| Range | 9/16-1IN |
| Leaves | 8 |
| Accuracy | ±.0025IN |
| Handle | No |
| Case | Yes |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 0.79 lb |
| Package Dimensions | 7.87IN L x 5.91IN W x 1.57IN H |
| UPC/EAN | 6928640330100 |
| Sold As | 1 Set (8 leaves) |
Choosing between options
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the radius range you need — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
4804-8E |
Product Family: |
Gages and Reference Tools |
Supplier Category Code: |
A |
EAN: |
6928640330100 |
Package Weight: |
0.79 lb |
Package Length: |
7.87 in |
Package Width: |
5.91 in |
Package Height: |
1.57 in |
Feature 1: |
Each piece has 3 concave and 2 convex gauging surfaces. |
Feature 2: |
8 Leaves, accuracy +/- .0025' Without Handle in Case |
Feature 3: |
9/16' to 1' |
