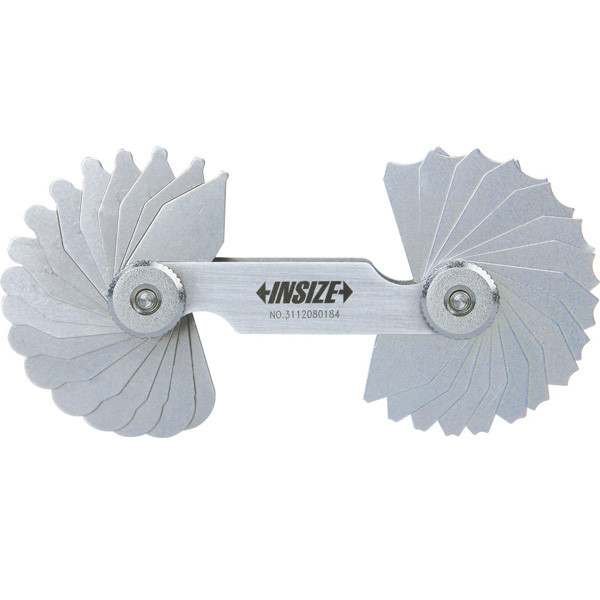

Insize 4801-16E1 – Radius Gage Set, 17/32IN-1IN
L. Dewitt's SKU #: 4801-16E1 | Mfr Part #: 4801-16E1Insize 4801-16E1 is a radius gage set from 17/32-1IN with 16 internal and 16 external leaves, for checking concave and convex radii on parts and fillets.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 17/32-1IN
- 16 internal and 16 external leaves
- Accuracy ±.0017IN
- Medium carbon steel
Technical Specifications
| Part Number | 4801-16E1 |
| Brand | Insize |
| Manufacturer Part Number | 4801-16E1 |
| Product Type | Radius Gage Set |
| Range | 17/32-1IN |
| Leaves | 16 internal + 16 external |
| Accuracy | ±.0017IN |
| Material | Medium carbon steel |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 0.29 lb |
| Package Dimensions | 4.92IN L x 1.77IN W x 0.51IN H |
| UPC/EAN | 6928640330070 |
| Sold As | 1 Set (32 leaves) |
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the radius range you need — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
4801-16E1 |
Product Family: |
Bore and Inside Measurement |
Supplier Category Code: |
A |
EAN: |
6928640330070 |
Package Weight: |
0.29 lb |
Package Length: |
4.92 in |
Package Width: |
1.77 in |
Package Height: |
0.51 in |
Feature 1: |
Radius Gage Set Range 17/32' to 1' |
Feature 2: |
16 Internal Leaves and 16 External Leaves |
Feature 3: |
Accuracy +/- .0017 |
Feature 4: |
Made of medium carbon steel |
