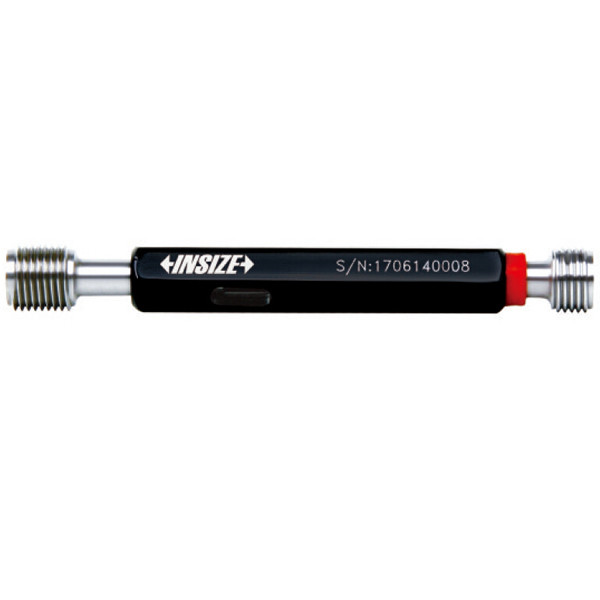

Insize 4130-22 – Metric Thread Plug Gage, Go and No Go, M22x2.5
L. Dewitt's SKU #: 4130-22 | Mfr Part #: 4130-22Insize 4130-22 is a thread plug gage for M22x2.5 internal threads, class 6H to ISO 1502, with GO and NO GO members supplied together. The GO member must thread in fully; the NO GO member checks that the pitch diameter is not oversize.
Key Features
- Thread size M22x2.5, tolerance class 6H
- Made to ISO 1502
- GO and NO GO members supplied together
- Manufacturer inspection certificate included
Technical Specifications
| Part Number | 4130-22 |
| Brand | Insize |
| Manufacturer Part Number | 4130-22 |
| Product Type | Metric Thread Plug Gage, Go and No Go |
| Thread Size | M22x2.5 |
| Tolerance Class | 6H |
| Gage Members | GO and NO GO |
| Standard | ISO 1502 |
| Certificate | Manufacturer inspection certificate |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 0.48 lb |
| Package Dimensions | 5.91IN L x 1.57IN W x 1.57IN H |
| UPC/EAN | 6928640340116 |
| Sold As | 1 Each |
Choosing between options
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and thread size, pitch and class — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
4130-22 |
Product Family: |
Gages and Reference Tools |
Supplier Category Code: |
A |
EAN: |
6928640340116 |
Package Weight: |
0.48 lb |
Package Length: |
5.91 in |
Package Width: |
1.57 in |
Package Height: |
1.57 in |
Feature 1: |
Supplied with Go and No-Go gages together. |
Feature 2: |
Class 6H. |
Feature 3: |
Standard ISO1502. |
Feature 4: |
Supplied with manufacturer inspection certificate. |
