Insize

Insize 4002-D – Angle Gage Block, 90° Square, 90°/90°/90°/90°

(No reviews yet) Write a Review

Tracked & insured shipping

Free Returns



30 Days Money Back Guarantee

SKU:
4002-D
UPC:
6928640354359
MPN:
4002-D
Availability:
Ships direct from Insize. Most items in stock; we confirm your ship date by email after you order.
Weight:
2.81 LBS
Width:
6.30 (in)
Height:
2.76 (in)
Depth:
7.48 (in)
Shipping:
Calculated at Checkout
$527.25

Sold Out

Frequently bought together:

Description

Insize 4002-D – Angle Gage Block, 90° Square, 90°/90°/90°/90°

L. Dewitt's SKU #: 4002-D  |  Mfr Part #: 4002-D

Insize 4002-D is a single angle gage block with four 90° angles, accurate to ±2 arc-seconds. Use it to inspect protractors, taper gages, index plates and index heads, to set an angle, or to add to or complete an angle block set.

Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Gage block holders and jaws6881-A1, 6881-A2 holders and 6881-E1E jaws turn a stack into a snap gage. We confirm fit for your set.Choose yours
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.

Key Features

  • Angle 90°/90°/90°/90°
  • Accuracy ±2 arc-seconds
  • For inspecting protractors, taper gages, index plates, index heads and goniometers; also used to set angles
  • Special alloy steel, hardness HRC64; wear resistant and easy to combine

Technical Specifications

Part Number4002-D
BrandInsize
Manufacturer Part Number4002-D
Product TypeAngle Gage Block, 90° Square
Angle90°/90°/90°/90°
Accuracy±2 arc-seconds
MaterialSpecial alloy steel
HardnessHRC64
AvailabilityShips direct from Insize; most items in stock. Ship date confirmed by email after you order.
Shipping Weight2.81 lb
Package Dimensions7.48IN L x 6.3IN W x 2.76IN H
UPC/EAN6928640354359
Sold As1 Each

Choosing between options

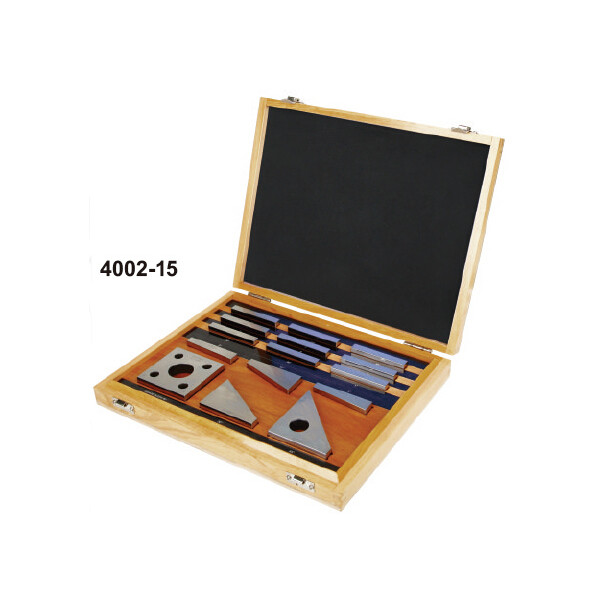

  • Need a full set? 4002-13 (13 pieces) and 4002-15 (15 pieces) combine to any angle in 6-second steps.

Other sizes & versions in this series

See all 23 products in the Insize 4002 series

Request a Quote

Need volume pricing or help matching the right Insize part?

Send the part number, quantity and the angle(s) you need — we reply the same day.

Contact Information

Authorized Insize distributor

📍  Nationwide shipping | Live Oak, TX

📞  (210) 494-1997

✉  [email protected]

View AllClose

Additional Information

Brand:
Insize
Manufacturer Part Number:
4002-D
Product Family:
Gages and Reference Tools
Supplier Category Code:
A
EAN:
6928640354359
Package Weight:
2.81 lb
Package Length:
7.48 in
Package Width:
6.3 in
Package Height:
2.76 in
Feature 1:
Accuracy: ±2'.
Feature 2:
To inspect protractor, taper gage, index plate, index head and goniometer, can also be used to set angle.
Feature 3:
Made of special alloy steel, hardness HRC64, high stability, wear resistance and easy combination.
Feature 4:
Can be combined to any angle with interval 6 seconds after combination (6', 12', 18', ... , 360°).
