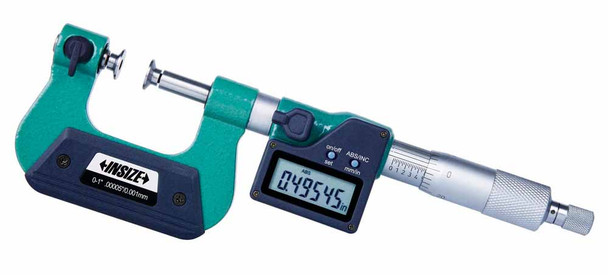

Insize 3580-50E – Digital Universal Micrometer, 1-2IN/25-50MM
L. Dewitt's SKU #: 3580-50E | Mfr Part #: 3580-50EInsize 3580-50E is a 1-2IN/25-50MM digital universal micrometer with a non-rotating spindle and 7 pairs of interchangeable anvil/spindle tips, reading to .00005IN/0.001MM. Change tips to measure different part features with one micrometer; the tips are the same as the 3280 series.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Optional 55° knife-edge anvil/spindle tip 3280-SP1 | 55° Knife-Edge Anvil/Spindle Tip | Add to cart |
| Optional 55° point anvil/spindle tip 3280-SP2 | 55° Point Anvil/Spindle Tip | Add to cart |
| Micrometer stand 6301 | Holds the micrometer so both hands are free for the part. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 1-2IN/25-50MM, resolution .00005IN/0.001MM
- Non-rotating spindle
- Supplied with 7 pairs of anvil/spindle tips (same as series 3280)
- Buttons: on/off, set, inch/mm, ABS/INC
- Data output (cable sold separately)
- LR44 battery with auto power off
- Ratchet stop for consistent measuring force
- Setting standard included
Technical Specifications
| Part Number | 3580-50E |
| Brand | Insize |
| Manufacturer Part Number | 3580-50E |
| Product Type | Digital Universal Micrometer |
| Range | 1-2IN/25-50MM |
| Resolution | .00005IN / 0.001MM |
| Tips Supplied | 7 pairs of anvil/spindle tips |
| Data Output | Yes (cable sold separately) |
| Battery | LR44 |
| Spindle | Non-rotating |
| Setting Standard | Included |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 1.98 lb |
| Package Dimensions | 8.9IN L x 5.04IN W x 1.69IN H |
| UPC/EAN | 6928640356186 |
| Sold As | 1 Each |
What you'll also need
Choosing between options
- No electronics needed? 3280-2 is the mechanical 1-2IN universal micrometer with 7 pairs of tips, graduation .0001IN.
Other sizes & versions in this series
- 3580-25E – 0-1IN/0-25MM
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the range you need and which extra tips you need — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
3580-50E |
Product Family: |
Micrometers |
Supplier Category Code: |
A |
EAN: |
6928640356186 |
Package Weight: |
1.98 lb |
Package Length: |
8.9 in |
Package Width: |
5.04 in |
Package Height: |
1.69 in |
Feature 1: |
Resolution .00005'/0.001mm. |
Feature 2: |
Non-rotating spindle. |
Feature 3: |
Button function: on/off, set, inch/mm, ABS/INC. |
Feature 4: |
Data output. LR44 battery, automatic power off. |
Feature 5: |
Ratchet stop. |
Feature 6: |
Supplied with 7 pairs of anvil/spindle tip (same as series 3280). |
Feature 7: |
Setting standards are included (except 0-1'/0-25mm). |
Feature 8: |
Optional accessory: 55°anvil/spindle tip part no.3280-SP1 and 3280-SP2 (sames as series 3280), data output cable. |
