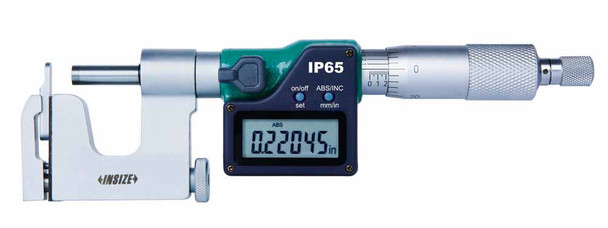

Insize 3562-50E – Digital Interchangeable Anvil Micrometer, 1-2IN/25-50MM
L. Dewitt's SKU #: 3562-50E | Mfr Part #: 3562-50EInsize 3562-50E is a 1-2IN/25-50MM digital micrometer with interchangeable flat and rod anvils, reading to .00005IN/0.001MM. Swap anvils to measure tube thickness, shoulder edge distance or rivet head height with one micrometer.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Micrometer stand 6301 | Holds the micrometer so both hands are free for the part. | Add to cart |
| Data output cable 7302-30 | Sends digital micrometer readings to Excel or SPC software as keyboard input. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 1-2IN/25-50MM, resolution .00005IN/0.001MM
- Measures tube thickness, shoulder edge distance, rivet head height and similar features
- Flat anvil and rod anvil supplied
- IP65 dust- and water-resistant
- Buttons: on/off, set, inch/mm, ABS/INC
- Data output (cable sold separately)
- LR44 battery with auto power off
- Ratchet stop for consistent measuring force
- Carbide spindle tip
- Setting standard included
Technical Specifications
| Part Number | 3562-50E |
| Brand | Insize |
| Manufacturer Part Number | 3562-50E |
| Product Type | Digital Interchangeable Anvil Micrometer |
| Range | 1-2IN/25-50MM |
| Resolution | .00005IN / 0.001MM |
| Anvils Supplied | Flat anvil, rod anvil |
| Protection Rating | IP65 |
| Data Output | Yes (cable sold separately) |
| Battery | LR44 |
| Spindle Tip | Carbide |
| Setting Standard | Included |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 1.55 lb |
| Package Dimensions | 8.9IN L x 5.04IN W x 1.69IN H |
| UPC/EAN | 6928640356155 |
| Sold As | 1 Each |
What you'll also need
- Data output cable (sold separately)
Choosing between options
- No electronics needed? 3262-2 is the mechanical 1-2IN interchangeable anvil micrometer, graduation .0001IN.
Other sizes & versions in this series
- 3562-25E – 0-1IN/0-25MM
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the feature you need to measure and its size range — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
3562-50E |
Product Family: |
Micrometers |
Supplier Category Code: |
A |
EAN: |
6928640356155 |
Package Weight: |
1.55 lb |
Package Length: |
8.9 in |
Package Width: |
5.04 in |
Package Height: |
1.69 in |
Feature 1: |
Resolution .00005'/0.001mm. |
Feature 2: |
Measure tube thickness, shoulder edge distance, rivet head height, etc. |
Feature 3: |
Supplied with flat anvil and rod anvil. |
Feature 4: |
IP65 dust/waterproof. |
Feature 5: |
Button function: on/off, set, inch/mm, ABS/INC. |
Feature 6: |
Data output. LR44 battery, automatic power off. |
Feature 7: |
Ratchet stop. Carbide spindle tip. |
Feature 8: |
Setting standards are included (except 0-1'/0-25mm). Optional accessory: data output cable. |
