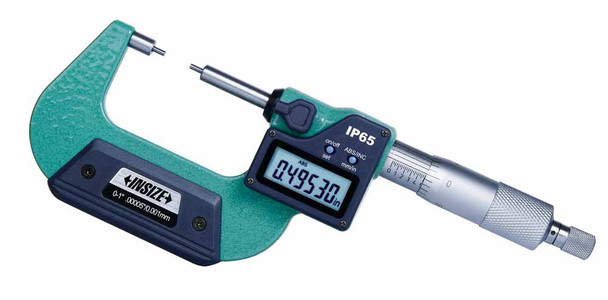

Insize 3533-25E – Digital Spline Micrometer, Type A, 0-1IN/0-25MM
L. Dewitt's SKU #: 3533-25E | Mfr Part #: 3533-25EInsize 3533-25E is a 0-1IN/0-25MM digital spline micrometer, type A, reading to .00005IN/0.001MM, for measuring splined shafts, slots and keyways. IP65 sealed, with data output for SPC.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Micrometer stand 6301 | Holds the micrometer so both hands are free for the part. | Add to cart |
| Data output cable 7302-30 | Sends digital micrometer readings to Excel or SPC software as keyboard input. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 0-1IN/0-25MM, resolution .00005IN/0.001MM
- Measures splined shafts, slots and keyways
- IP65 dust- and water-resistant
- Buttons: on/off, set, inch/mm, ABS/INC
- Data output (cable sold separately)
- LR44 battery with auto power off
- Ratchet stop for consistent measuring force
- Carbide measuring faces
- No setting standard with the 0-1IN/0-25MM size (supplied with larger sizes)
Technical Specifications
| Part Number | 3533-25E |
| Brand | Insize |
| Manufacturer Part Number | 3533-25E |
| Product Type | Digital Spline Micrometer, Type A |
| Range | 0-1IN/0-25MM |
| Resolution | .00005IN / 0.001MM |
| Protection Rating | IP65 |
| Data Output | Yes (cable sold separately) |
| Battery | LR44 |
| Measuring Faces | Carbide |
| Setting Standard | Not included (0-start size) |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 1.47 lb |
| Package Dimensions | 8.9IN L x 5.04IN W x 1.69IN H |
| UPC/EAN | 6928640355837 |
| Sold As | 1 Each |
What you'll also need
- Data output cable (sold separately)
Choosing between options
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the spline or keyway dimension and type (A or B) — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
3533-25E |
Product Family: |
Micrometers |
Supplier Category Code: |
A |
EAN: |
6928640355837 |
Package Weight: |
1.47 lb |
Package Length: |
8.9 in |
Package Width: |
5.04 in |
Package Height: |
1.69 in |
Feature 1: |
Resolution .00005'/0.001mm. |
Feature 2: |
Measure splined shafts, slots and keyways. |
Feature 3: |
IP65 dust/waterproof. |
Feature 4: |
Button function: on/off, set, inch/mm, ABS/INC. |
Feature 5: |
Data output. LR44 battery, automatic power off. |
Feature 6: |
Ratchet stop. Carbide measuring faces. |
Feature 7: |
Supplied with setting standards (except 0-1'/0-25mm). |
Feature 8: |
Optional accessory: data output cable. |
