Description

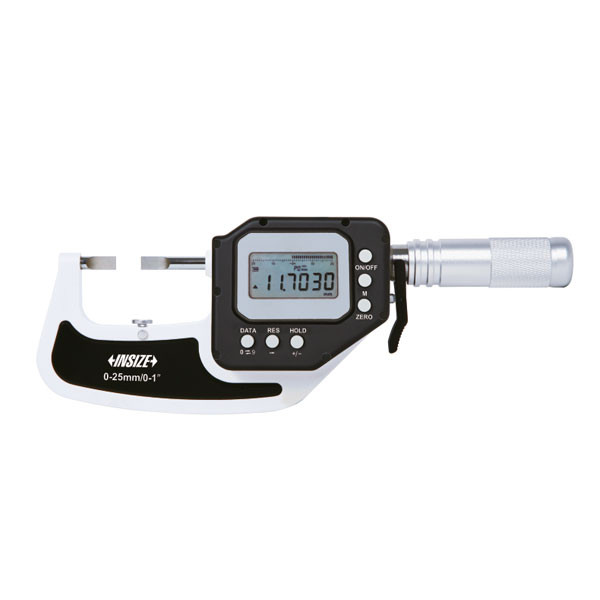

Insize 3352-25AWL – High Precision Digital Blade Micrometer/Snap Gage, Built-in Wireless, 0-25MM/0-1IN, .0002MM/.00001IN
L. Dewitt's SKU #: 3352-25AWL | Mfr Part #: 3352-25AWLInsize 3352-25AWL is a 0-25MM/0-1IN high precision digital blade micrometer/snap gage reading to .0002MM/.00001IN, for measuring groove diameters on shafts and keyways. Readings go out over built-in wireless.
Key Features
- Range 0-25MM/0-1IN, resolution .0002MM/.00001IN
- Blade spindle and anvil for groove diameters of shafts and keyways
- Built-in wireless data transmission
- Absolute encoder: reference data is kept after power off
- One turn of the sleeve feeds the spindle .2IN; using the sleeve does not affect accuracy
- Pressing the fork retracts the spindle .12IN
- Linear ball bearings rated for ten million uses
- Carbide spindle and anvil
Technical Specifications
| Part Number | 3352-25AWL |
| Brand | Insize |
| Manufacturer Part Number | 3352-25AWL |
| Product Type | High Precision Digital Blade Micrometer/Snap Gage, Built-in Wireless |
| Range | 0-25MM/0-1IN |
| Resolution | .0002MM / .00001IN |
| Data Output | Built-in wireless |
| Encoder | Absolute |
| Measuring Faces | Carbide blades |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 3.96 lb |
| Package Dimensions | 12.9IN L x 11.02IN W x 3.54IN H |
| UPC/EAN | 6940561982169 |
| Sold As | 1 Each |
What you'll also need
- Insize wireless receiver to collect readings (confirm the matching model with us)
Choosing between options
Other sizes & versions in this series
- 3352-50AWL – 25-50MM/1-2IN, .0002MM/.00001IN
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the groove diameter and width you need to measure — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
3352-25AWL |
Product Family: |
Micrometers |
Supplier Category Code: |
A |
EAN: |
6940561982169 |
Package Weight: |
3.96 lb |
Package Length: |
12.9 in |
Package Width: |
11.02 in |
Package Height: |
3.54 in |
Feature 1: |
Measure the groove diameter of shafts and keyways |
Feature 2: |
Absolute encoder, the original data remains after power off |
Feature 3: |
One turn of sleeve makes .2' spindle feed |
Feature 4: |
Measurement accuracy is not affected by the use of sleeve |
Feature 5: |
Press the fork, the spindle retracts .12' |
Feature 6: |
Linear ball bearings for ten million times use |
Feature 7: |
Carbide spindle and anvil |
