Description

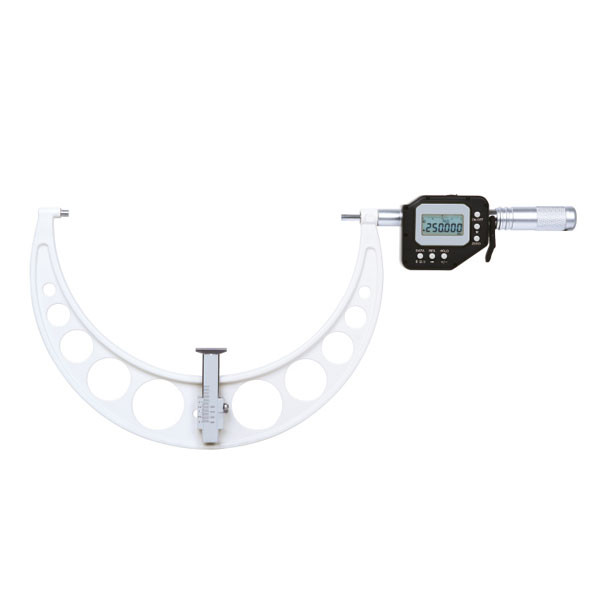

Insize 3351-250 – High Precision Digital Micrometer/Snap Gage, 225-250MM/9-10IN
L. Dewitt's SKU #: 3351-250 | Mfr Part #: 3351-250Insize 3351-250 is a 225-250MM/9-10IN high precision digital micrometer/snap gage with adjustable resolution down to .00001IN/0.0002MM, for repeated OD checks on larger shafts and parts. It has a data interface for sending readings to a computer or SPC system.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Micrometer stand 6301 | Holds the micrometer so both hands are free for the part. | Add to cart |
| Data output cable 7302-30 | Sends digital micrometer readings to Excel or SPC software as keyboard input. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 225-250MM/9-10IN
- Adjustable resolution .00001IN/0.0002MM, .00005IN/0.001MM or .0005IN/0.01MM
- Data interface for sending readings
- Absolute encoder: reference data is kept after power off
- One turn of the sleeve feeds the spindle .2IN; using the sleeve does not affect accuracy
- Pressing the fork retracts the spindle .12IN
- Linear ball bearings rated for ten million uses
- Carbide spindle and anvil
- Measuring force 5-8N
Technical Specifications
| Part Number | 3351-250 |
| Brand | Insize |
| Manufacturer Part Number | 3351-250 |
| Product Type | High Precision Digital Micrometer/Snap Gage |
| Range | 225-250MM/9-10IN |
| Resolution | .00001IN / 0.0002MM, .00005IN / 0.001MM, .0005IN / 0.01MM |
| Data Output | Data interface |
| Encoder | Absolute |
| Spindle Retraction | .12IN |
| Measuring Faces | Carbide |
| Measuring Force | 5-8N |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 9.26 lb |
| Package Dimensions | 22.44IN L x 10.59IN W x 3.54IN H |
| UPC/EAN | 6940561966954 |
| Sold As | 1 Each |
Choosing between options
- Want readings sent without a cable? 3351-250WL is the same 225-250MM/9-10IN model with built-in wireless.
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the diameter you need to check and how you collect readings — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
3351-250 |
Product Family: |
Micrometers |
Supplier Category Code: |
A |
EAN: |
6940561966954 |
Package Weight: |
9.26 lb |
Package Length: |
22.44 in |
Package Width: |
10.59 in |
Package Height: |
3.54 in |
Feature 1: |
Adjustable resolution: .00001'/0.0002mm, .00005'/0.001mm, .0005'/0.01mm |
Feature 2: |
Absolute encoder, the original data remains after power off |
Feature 3: |
One turn of sleeve makes .2' spindle feed |
Feature 4: |
Measurement accuracy is not affected by the use of sleeve |
Feature 5: |
Press the fork, the spindle retracts .12' |
Feature 6: |
Linear ball bearings for ten million times use |
Feature 7: |
Carbide spindle and anvil |
Feature 8: |
Measuring force 5-8N |
