Description

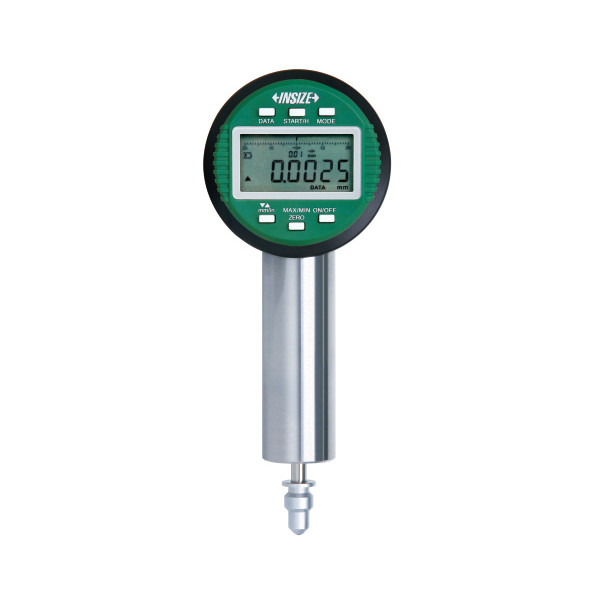

Insize 2140-6WL – High Precision Digital Indicator, Flat Back, Built-in Wireless, 0-6MM/0-.24IN
L. Dewitt's SKU #: 2140-6WL | Mfr Part #: 2140-6WLInsize 2140-6WL is a high precision 0-6MM/0-.24IN digital indicator with selectable resolution down to .00001IN/0.0002MM and a 1.102IN diameter stem for rigid clamping, with built-in wireless.
Key Features
- Range 0-6MM/0-.24IN
- Selectable resolution: .00001IN/0.0002MM, .00005IN/0.001MM, .0005IN/0.01MM
- 1.102IN diameter stem for reinforced clamping
- Absolute encoder; original data is kept after power off
- Linear ball bearing rated for ten million uses
- Display flips over when the spindle faces up
- Digital and analog reading
- Buttons: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, mm/inch, resolution
- Data output
- Flat back
Technical Specifications
| Part Number | 2140-6WL |
| Brand | Insize |
| Manufacturer Part Number | 2140-6WL |
| Product Type | High Precision Digital Indicator, Flat Back, Built-in Wireless |
| Range | 0-6MM / 0-.24IN |
| Resolution | .00001IN/0.0002MM / .00005IN/0.001MM / .0005IN/0.01MM |
| Stem Diameter | 1.102IN |
| Encoder | Absolute |
| Back | Flat back |
| Data Output | Built-in wireless |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 2.7 lb |
| Package Dimensions | 10.24IN L x 7.48IN W x 3.94IN H |
| UPC/EAN | 6940561945393 |
| Sold As | 1 Each |
What you'll also need
- Wireless receiver to collect readings
Choosing between options
- No wireless needed? 2140-6 is the same indicator with cable data output.
Other sizes & versions in this series
- 2140-6 – 0-6MM/0-.24IN
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and resolution and how you collect readings — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2140-6WL |
Product Family: |
Indicators and Test Indicators |
Supplier Category Code: |
A |
EAN: |
6940561945393 |
Package Weight: |
2.7 lb |
Package Length: |
10.24 in |
Package Width: |
7.48 in |
Package Height: |
3.94 in |
Feature 1: |
Resolution .00001'/0.0002mm, .00005'/0.001mm, .0005'/0.01mm |
Feature 2: |
Linear ball bearing for ten million times use |
Feature 3: |
1.102' DIA stem suitable for reinforces clamping |
Feature 4: |
Absolutely encoder, the original data remains after power off |
Feature 5: |
The display flips over when the spindle faces up |
Feature 6: |
Reading in digital and analog |
Feature 7: |
Data output |
Feature 8: |
Button function: data output, tolerance, data preset, data hold, measuring directiion change, max. min./TIR, power off time, on/off, mm/in, adjust resolution |
