Description

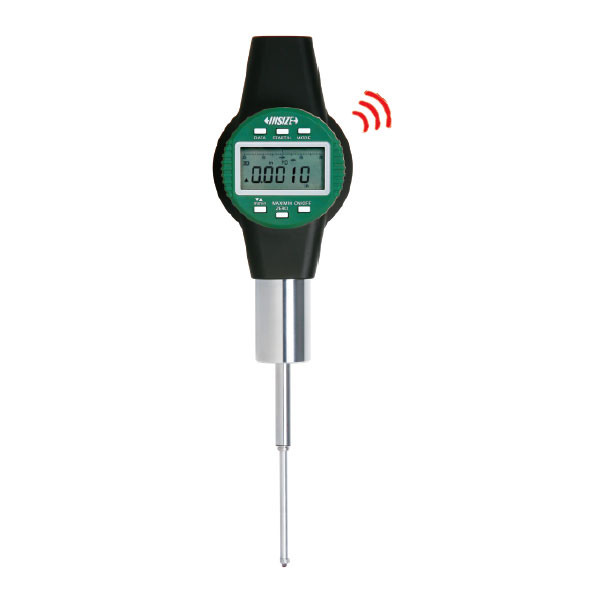

Insize 2134-50E – Wireless High Precision Digital Indicator, Flat Back, 2IN/50.8MM
L. Dewitt's SKU #: 2134-50E | Mfr Part #: 2134-50EInsize 2134-50E is a high precision 2IN/50.8MM digital indicator with built-in ZigBee wireless, selectable resolution down to .00002IN/0.0005MM, an absolute encoder and a rechargeable battery. Readings go to a computer without a cable.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Foot switch 2134-FS | Foot Switch | Add to cart |
| Magnetic stand 6201-60 | Holds the indicator on any steel surface for setup and runout checks. | Add to cart |
| Magnetic stand, larger 6202-80 | Longer reach and fine adjustment for bigger setups. | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Range 2IN/50.8MM
- Selectable resolution: .00002IN/0.0005MM, .00005IN/0.001MM, .0005IN/0.01MM
- Built-in wireless transmission, ZigBee signal
- Absolute encoder; original data is kept after power off
- Linear ball bearing rated for ten million uses
- Digital and analog reading
- Buttons: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, mm/inch, resolution
- Rechargeable battery, 24 hours continuous working
- Flat back
Technical Specifications
| Part Number | 2134-50E |
| Brand | Insize |
| Manufacturer Part Number | 2134-50E |
| Product Type | Wireless High Precision Digital Indicator, Flat Back |
| Range | 2IN/50.8MM |
| Resolution | .00002IN/0.0005MM / .00005IN/0.001MM / .0005IN/0.01MM |
| Data Output | Built-in wireless (ZigBee) |
| Encoder | Absolute |
| Back | Flat back |
| Power | Rechargeable battery, 24 hours continuous |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 2.2 lb |
| Package Dimensions | 12.91IN L x 11.3IN W x 3.62IN H |
| UPC/EAN | 6940561904109 |
| Sold As | 1 Each |
What you'll also need
- Wireless receiver (optional accessory)
- Foot switch 2134-FS (optional accessory)
- Optional contact points
Choosing between options
- No wireless needed? 2133-50E is the same 2IN/50.8MM high precision indicator with cable data output.
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and range, resolution and how you collect readings — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2134-50E |
Product Family: |
Indicators and Test Indicators |
Supplier Category Code: |
A |
EAN: |
6940561904109 |
Package Weight: |
2.2 lb |
Package Length: |
12.91 in |
Package Width: |
11.3 in |
Package Height: |
3.62 in |
Feature 1: |
Resolution .00002'/0.0005mm, .00005'/0.001mm, .0005'/0.01mm |
Feature 2: |
Built-in wireless transmission, ZigBee signal |
Feature 3: |
Linear ball bearing for ten million times use |
Feature 4: |
Absolutely encoder, the original data remains after power off |
Feature 5: |
Reading in digital and analog |
Feature 6: |
Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, mm/inch, adjust resolution |
Feature 7: |
Power: rechargeable battery, for 24 hours continuous working |
Feature 8: |
Optional accessory: contact points, foot switch, wireless receiver |
