Description

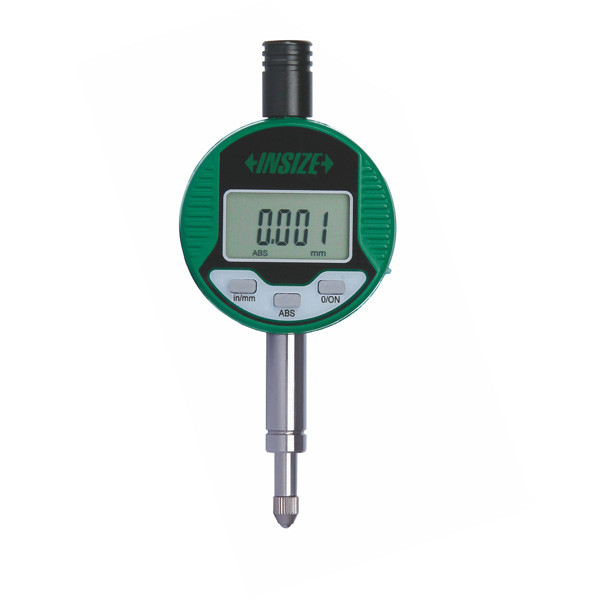

Insize 2114-5FE – Compact Digital Indicator, Flat Back, .2IN/5MM
L. Dewitt's SKU #: 2114-5FE | Mfr Part #: 2114-5FEInsize 2114-5FE is a compact .2IN/5MM digital indicator with flat back, reading to .0005IN/0.01MM, for tight spaces on fixtures and gages. Meets ASME B89.1.10M-2001.
Key Features
- Range .2IN/5MM, resolution .0005IN/0.01MM
- Meets ASME B89.1.10M-2001
- in/mm button: short press for inch/metric, long press to change measuring direction
- ABS button: short press for absolute/incremental, long press to preset data
- 0/ON button: power on, zero, long press to power off
- Keeps preset data in memory after restart
- CR1632 battery, auto power off; data output
- Flat back
Technical Specifications
| Part Number | 2114-5FE |
| Brand | Insize |
| Manufacturer Part Number | 2114-5FE |
| Product Type | Compact Digital Indicator, Flat Back |
| Range | .2IN / 5MM |
| Resolution | .0005IN/0.01MM |
| Back | Flat back |
| Standard | ASME B89.1.10M-2001 |
| Battery | CR1632 |
| Data Output | Yes (cable sold separately) |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 0.67 lb |
| Package Dimensions | 6.1IN L x 3.82IN W x 2.64IN H |
| UPC/EAN | 6928640357855 |
| Sold As | 1 Each |
What you'll also need
- Data output cable (sold separately)
- Optional contact points
Choosing between options
- Finer resolution: 2114-51FE is the same compact indicator reading to .00005IN/0.001MM.
Other sizes & versions in this series
- 2114-51FE – Resolution .00005IN/0.001MM
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and resolution and how you will mount it — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2114-5FE |
Product Family: |
Indicators and Test Indicators |
Supplier Category Code: |
A |
EAN: |
6928640357855 |
Package Weight: |
0.67 lb |
Package Length: |
6.1 in |
Package Width: |
3.82 in |
Package Height: |
2.64 in |
Feature 1: |
Resolution .0005'/0.01mm |
Feature 2: |
Meet ASME B89.1.10M-2001. |
Feature 3: |
Button function: in/mm: short press for inch/metric conversion, long press to change measuring direction. |
Feature 4: |
ABS: short press for absolute/incremental measurement, long press to preset data. |
Feature 5: |
0/ON: short press to turn on when power is off, short press to set zero when power is on, long press to turn off. |
Feature 6: |
Keep preset data in memory after restart. |
Feature 7: |
CR1632 battery, automatic power off. Data output. |
Feature 8: |
Optional accessory: data output cable, contact points |
