Description

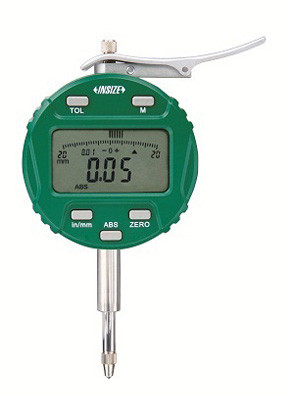

Insize 2109-10E – Digital Indicator with Lifting Lever, Flat Back, .4IN/10MM
L. Dewitt's SKU #: 2109-10E | Mfr Part #: 2109-10EInsize 2109-10E is a .4IN/10MM digital indicator with a lifting lever to raise the spindle, reading to .0005IN/0.01MM, with tolerance GO/NO GO display and max./min./TIR measurement.
Key Features
- Range .4IN/10MM, resolution .0005IN/0.01MM
- Lifting lever raises the spindle
- Digital and analog reading; display rotates 320°
- Buttons: tolerance GO/NO GO display, data preset, measuring direction change, max./min./TIR, inch/metric, absolute/incremental
- Keeps preset and tolerance data in memory after restart
- CR2032 battery, auto power off; data output
- Flat back
Technical Specifications
| Part Number | 2109-10E |
| Brand | Insize |
| Manufacturer Part Number | 2109-10E |
| Product Type | Digital Indicator with Lifting Lever, Flat Back |
| Range | .4IN / 10MM |
| Resolution | .0005IN/0.01MM |
| Back | Flat back |
| Battery | CR2032 |
| Data Output | Yes (cable sold separately) |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 0.82 lb |
| Package Dimensions | 6.1IN L x 3.82IN W x 2.64IN H |
| UPC/EAN | 6928640379109 |
| Sold As | 1 Each |
What you'll also need
- Data output cable, e.g. 7302-40M keyboard-format cable for digital indicators (sold separately)
- Optional backs and contact points
Choosing between options
- Finer resolution: 2109-101E is the same lifting-lever indicator reading to .00005IN/0.001MM.
Other sizes & versions in this series
- 2109-101E – Resolution .00005IN/0.001MM
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and resolution and back style — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
2109-10E |
Product Family: |
Indicators and Test Indicators |
Supplier Category Code: |
A |
EAN: |
6928640379109 |
Package Weight: |
0.82 lb |
Package Length: |
6.1 in |
Package Width: |
3.82 in |
Package Height: |
2.64 in |
Feature 1: |
Resolution .0005'/0.01mm |
Feature 2: |
Reading in digit and analog. Display can be rotated by 320º. |
Feature 3: |
Button function: tolerance Go and No-Go display, data preset, measuring direction change, |
Feature 4: |
max./min./TIR measurement, inch/metric conversion, absolute/incremental measurement. |
Feature 5: |
Keep preset data and tolerance data in memory after restart. |
Feature 6: |
CR2032 battery, automatic power off. |
Feature 7: |
Data output |
Feature 8: |
Optional accessory: data output cable, backs, contact points |
