Description
YG-1 JAI38931 Alu-Power HPC 3 Flute 37 Degree. Helix Chip Breaker Corner Radius Coated End Mill 1/2(R.06) x 1/2 x 2-1/2 x 5
L. Dewitt's SKU #: JAI38931 | Mfr Part #: JAI38931Aluminum machining moves fast, but the wrong end mill can create built-up edge, chip packing, heat, chatter, poor finish, and avoidable setup questions. YG-1 Alu-Power HPC end mills help maintenance teams, CNC programmers, and industrial buyers choose a high-performance 3 flute carbide tool for aluminum, aluminum die cast, non-ferrous alloys, and plastics by geometry, coating, reach, and exact dimensions.
- CNC programmers and machinists running aluminum, die cast aluminum, non-ferrous alloys, and plastics at high spindle speeds.
- Production and tooling teams selecting 3 flute geometry for ramping, roughing, slotting, pocketing, side cutting, profiling, and peel milling.
- Maintenance and tooling managers replacing Alu-Power HPC tools by EDP, coating, corner style, reach, and exact dimensions.
- Industrial buyers comparing coated, uncoated, square end, corner radius, ball nose, and chip breaker variants before checkout.
JAI38931: YG-1 Alu-Power HPC 3 flute chip breaker corner radius solid carbide end mill with DLC-coated construction. Use this model when the operation calls for high-speed aluminum milling where chip length control and evacuation matter during heavier roughing, pocketing, slotting, and side-cutting work and the listed dimensions match the holder, workpiece, reach requirement, and cutting conditions.
Why This Model
Use this Alu-Power HPC model when the job requires a high-performance solid carbide end mill for aluminum and compatible non-ferrous materials. The selection decision should be based on cutting edge shape, coating, flute count, helix angle, cutting diameter, shank diameter, length of cut, reach, and overall length before the tool is added to the job.
Technical Specifications
| Brand | YG-1 |
| Product Family | Alu-Power HPC |
| Tool Type | High-performance solid carbide end mill |
| Tool Style | Chip Breaker Corner Radius |
| Cutting Edge Shape | Corner Radius |
| Flutes | 3 Flute |
| Helix Angle | 37 Degree |
| Coating | DLC Coating |
| Manufacturer Part Number | JAI38931 |
| Cutting Diameter | 1/2 |
| Corner Radius | R.06 |
| Shank Diameter | 1/2 |
| Length of Cut | 2-1/2 |
| Overall Length | 5 |
| Size | 1/2(R.06) x 1/2 x 2-1/2 x 5 |
What This Solves
- Better aluminum-tooling decisions. Geometry, coating, reach, and edge style are visible so programmers can match the end mill to the operation.
- Faster replacement matching. EDP, dimensions, flute count, coating, and tool style are structured for repeat ordering.
- Reduced wrong-tool risk. Selection checks help buyers confirm holder fit, reach, material, machine rigidity, coolant strategy, and cutting setup before checkout.
- More practical production planning. The description connects the product to chip evacuation, built-up-edge control, ramping, pocketing, profiling, and high-speed aluminum work.
Common Applications
- Aluminum, aluminum die cast, non-ferrous alloys, copper and brass, plastics, and other compatible non-metallic materials
- high-speed roughing, chip-control pocketing, slotting, side cutting, peel milling, and aluminum production work
- High-speed and high-performance aluminum machining where stable setup, chip evacuation, and finish control matter
- Maintenance replacement when an existing YG-1 Alu-Power HPC EDP or geometry must be matched
Quick Answer
YG-1 JAI38931 Alu-Power HPC 3 Flute 37 Degree. Helix Chip Breaker Corner Radius Coated End Mill 1/2(R.06) x 1/2 x 2-1/2 x 5 is a YG-1 Alu-Power HPC chip breaker corner radius solid carbide end mill for aluminum, aluminum die cast, non-ferrous alloy, and plastic machining applications.
- Product Family: Alu-Power HPC
- Tool Style: Chip Breaker Corner Radius
- Cutting Edge Shape: Corner Radius
- Flutes: 3 Flute
- Helix Angle: 37 Degree
- Coating: DLC Coating
- Manufacturer Part Number: JAI38931
- Cutting Diameter: 1/2
- Corner Radius: R.06
- Shank Diameter: 1/2
- Length of Cut: 2-1/2
- Overall Length: 5
Common Questions
What is the YG-1 JAI38931?
JAI38931 is an Alu-Power HPC chip breaker corner radius solid carbide end mill for high-performance machining in aluminum, aluminum die cast, non-ferrous alloys, and plastics.
What materials use Alu-Power HPC end mills?
Alu-Power HPC tools are selected for aluminum, aluminum die cast, non-ferrous alloys, copper and brass, plastics, and compatible non-metallic materials when the selected geometry and cutting parameters match the job.
How do I confirm the correct replacement?
Match the EDP JAI38931, tool style, coating, flute count, cutting edge shape, cutting diameter, shank diameter, length of cut, reach, and overall length against the existing tool or programmed job requirements.
How should this end mill be used?
Use it in a rigid setup with the correct holder, coolant or air strategy, work material, toolpath, chip evacuation plan, and cutting parameters for the selected Alu-Power HPC geometry.
What results should this product support?
When selected correctly, this Alu-Power HPC end mill supports a cleaner tooling workflow: faster SKU matching, clearer setup checks, fewer wrong-tool decisions, and more confidence before the tool is ordered or replaced.

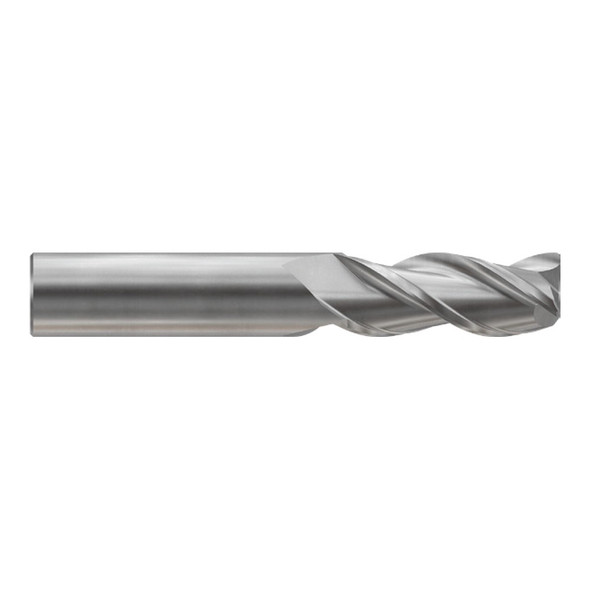

Image reference: YG-1 Alu-Power HPC end mill JAI38931.
Need Help Matching an Alu-Power HPC End Mill?
Send us the EDP, current tool marking, dimensions, work material, machine setup, or application details. L. Dewitt McCarter, Inc. can help verify the correct YG-1 replacement for your aluminum milling setup.
Contact Our Technical TeamAdditional Information
Manufacturer: |
YG-1 |
Manufacturer Part Number: |
JAI38931 |
Product Family: |
Alu-Power HPC |
Tool Category: |
High Performance End Mill |
Application Family: |
Aluminum, non-ferrous alloys, and plastics |
Tool Style: |
Chip Breaker Corner Radius |
Cutting Edge Shape: |
Corner Radius |
Flutes: |
3 Flute |
Helix Angle: |
37 Degree |
Coating: |
DLC Coating |
Package Unit: |
1 |
Size: |
1/2(R.06) x 1/2 x 2-1/2 x 5 |
Corner Radius: |
R.06 |
Cutting Diameter: |
1/2 |
Shank Diameter: |
1/2 |
Length of Cut: |
2-1/2 |
Overall Length: |
5 |
