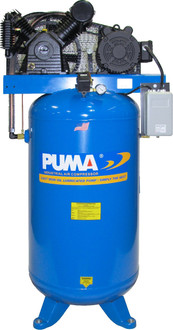

Puma TN-7580VM 7.5 HP, 80 Gallon Vertical Tank with Magnetic Starter
L. DeWitt McCarter SKU #: TN-7580VM | Mfr Part #: TN-7580VM
Puma commercial/industrial two-stage compressors are built for continuous shop and plant air, with a cast iron pump, magnetic starter and 80-gallon ASME/CRN tank.
Standard Features
- Cast iron two-stage pump built for commercial and industrial duty
- Magnetic motor starter included
- 175 PSI max working pressure
- 80-gallon vertical ASME / CRN tank
- 1/2" outlet ball valve and 1/4" extended manual drain
Puma Pump Construction
- Precision-honed cast iron cylinders
- One-piece cast iron crankcase for smooth, durable operation
- Oil sight glass for quick, accurate oil-level checks
- Oversized flywheel moves a high volume of cooling air across the pump
Specifications
| Brand | Puma |
|---|---|
| Model | TN-7580VM |
| Series | Commercial / Industrial 7.5 HP Two-Stage Belt Drive Stationary Series |
| Horsepower | 7.5 HP |
| Motor RPM / Frame | 3450 / 184 frame |
| Voltage / Phase / Amps | 208-230V, single phase, 33 A |
| Pump RPM | 1161 |
| Max Working Pressure | 175 PSI |
| FAD CFM @ 90 PSI | 22 |
| FAD CFM @ 175 PSI | 21 |
| Tank | 80 gal |
| Tank Style | Vertical |
| Tank Code | ASME / CRN |
| Weight | 550 lb |
| Magnetic Starter | Included |
| Outlet Ball Valve | 1/2" |
| Manual Drain | 1/4" extended |
| Ships From | Memphis, TN |
Shipping & Freight
Ships LTL freight from Puma in Memphis, TN. Unit weight is about 550 lb. Freight is quoted to your ZIP code. Tell us if you need liftgate or residential delivery, or send your own freight account and we will route it.
Common Questions
How much air does the Puma TN-7580VM deliver?
22 CFM at 90 PSI and 21 CFM at 175 PSI, per the Puma catalog. Add up the CFM your tools use at 90 PSI and leave headroom.
What power supply does it need?
208-230V, single phase, 33 A. Wire it to a dedicated circuit sized for the motor and follow local electrical code.
Can I get a quote for multiple units?
Yes. Send the model, quantity and ship-to ZIP through the quote form below or call (210) 494-1997.
Product Documentation
Click to view in your browser — use your browser's save option to download a copy.
Request a Quote
Need volume pricing, availability, or help finding the right part?
Send us your part numbers and quantities — our technical team responds fast during business hours.
Contact Information
Industrial supply distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Puma |
Manufacturer Part Number: |
TN-7580VM |
Product Family: |
Two-Stage Stationary Air Compressors |
Power Type: |
Electric |
Stage: |
Two Stage |
Drive Style: |
Belt Drive |
Mount Style: |
Stationary |
Lubrication Style: |
Oil-Lubricated |
Horsepower: |
7.5 HP |
Tank Size: |
80 Gallon |
Tank Style: |
Vertical Tank |
UPC: |
636084 02903 5 |
Availability: |
Regular Stock Unit |
Approx. Ship Weight: |
565 lb |
Approx. Ship Width: |
48 in |
Approx. Ship Height: |
78 in |
Approx. Ship Depth: |
50 in |
