Description

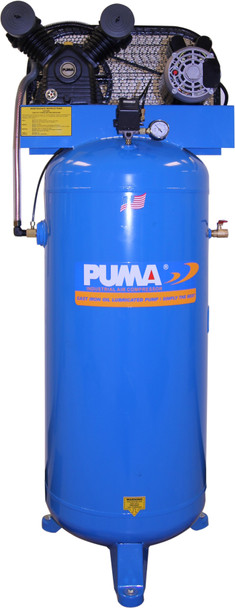

Puma PK-6060V 3 HP, 60 Gallon Vertical
L. DeWitt McCarter SKU #: PK-6060V | Mfr Part #: PK-6060V
Puma single-stage belt drive stationary compressors use an oil-lubricated cast iron pump on an ASME/CRN vertical tank for shop air that runs all day.
Standard Features
- Oil-lubricated single-stage cast iron pump
- Single-phase induction motor with overload protection
- 1/2" outlet ball valve and 1/4" drain ball valve
- ASME / CRN vertical tank
- Automatic water drain, vibration damper and regulator/filter accessories available
Puma Pump Construction
- Precision-honed cast iron cylinders
- One-piece cast iron crankcase for smooth, durable operation
- Oil sight glass for quick, accurate oil-level checks
- Oversized flywheel moves a high volume of cooling air across the pump
Specifications
| Brand | Puma |
|---|---|
| Model | PK-6060V |
| Series | Professional Single-Stage Belt Drive Stationary Series |
| Horsepower | 3 HP |
| Motor RPM / Frame | 3450 / 56 frame |
| Voltage / Phase / Amps | 208-230V, single phase, 16.6-15 A |
| Pump RPM | 980 |
| Max Working Pressure | 135 PSI |
| CFM @ 40 PSI | 12.6 |
| CFM @ 90 PSI | 11.3 |
| Tank | 60 gal |
| Tank Style | Vertical |
| Tank Code | ASME / CRN |
| Weight | 305 lb |
| Magnetic Starter | Not available |
| Ships From | Memphis, TN |
Shipping & Freight
Ships LTL freight from Puma in Memphis, TN. Unit weight is about 305 lb. Freight is quoted to your ZIP code. Tell us if you need liftgate or residential delivery, or send your own freight account and we will route it.
Common Questions
How much air does the Puma PK-6060V deliver?
11.3 CFM at 90 PSI and 12.6 CFM at 40 PSI, per the Puma catalog. Add up the CFM your tools use at 90 PSI and leave headroom.
What power supply does it need?
208-230V, single phase, 16.6-15 A. Wire it to a dedicated circuit sized for the motor and follow local electrical code.
Can I get a quote for multiple units?
Yes. Send the model, quantity and ship-to ZIP through the quote form below or call (210) 494-1997.
Product Documentation
Click to view in your browser — use your browser's save option to download a copy.
Request a Quote
Need volume pricing, availability, or help finding the right part?
Send us your part numbers and quantities — our technical team responds fast during business hours.
Contact Information
Industrial supply distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Puma |
Manufacturer Part Number: |
PK-6060V |
Product Family: |
Stationary Air Compressors |
Power Type: |
Electric |
Stage: |
Single Stage |
Drive Style: |
Belt Drive |
Mount Style: |
Stationary |
Lubrication Style: |
Oil-Lubricated |
Horsepower: |
3 HP |
Tank Size: |
60 Gallon |
Tank Style: |
Vertical Tank |
UPC: |
636084 16061 5 |
Availability: |
Regular Stock Unit |
Approx. Ship Weight: |
388 lb |
Approx. Ship Width: |
48 in |
Approx. Ship Height: |
75 in |
Approx. Ship Depth: |
50 in |
