Description

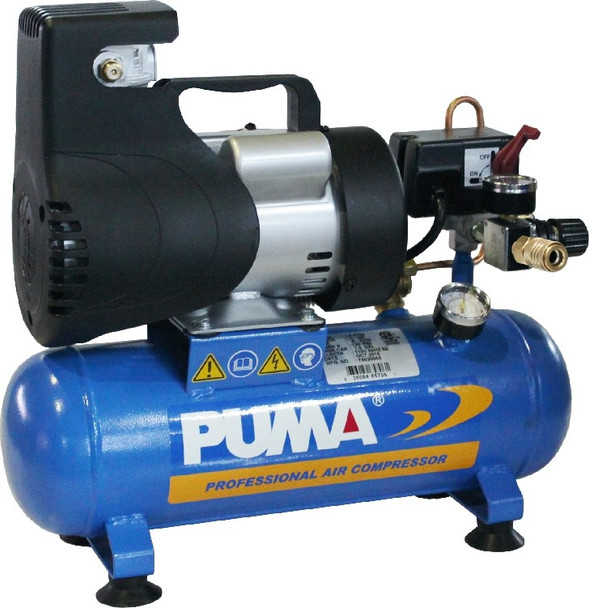

Puma LA-5706 1 HP, Oil-Less with Hot Dog Hand Carry Tank
L. DeWitt McCarter SKU #: LA-5706 | Mfr Part #: LA-5706
Puma oil-less direct drive compressors are compact, portable and maintenance-free, with induction motors and overload protection.
Standard Features
- Compact, portable design
- Patented pump design for lower noise and improved cooling (PN and LA models)
- Maintenance-free oil-less pump
- Induction motor with overload protection
- Suited to home shop and professional use
Specifications
| Brand | Puma |
|---|---|
| Model | LA-5706 |
| Series | Professional Oil-less Direct Drive Series |
| Horsepower | 1 HP |
| Motor RPM | 3450 |
| CFM @ 40 PSI | 3.0 |
| CFM @ 90 PSI | 2.2 |
| Max Pressure | 135 PSI |
| Voltage / Phase | 115V / single phase |
| Full-Load Amps | 6.5 A |
| Tank | 1.5 gal hot dog |
| Noise | 76 dB |
| Certification | CSA |
| Weight | 33 lb |
| Ships From | Memphis, TN |
Shipping & Freight
Ships from Puma in Memphis, TN by UPS ground.
Common Questions
How much air does the Puma LA-5706 deliver?
2.2 CFM at 90 PSI and 3.0 CFM at 40 PSI, per the Puma catalog. Add up the CFM your tools use at 90 PSI and leave headroom.
What power supply does it need?
115V / single phase. Wire it to a dedicated circuit sized for the motor and follow local electrical code.
Can I get a quote for multiple units?
Yes. Send the model, quantity and ship-to ZIP through the quote form below or call (210) 494-1997.
Product Documentation
Click to view in your browser — use your browser's save option to download a copy.
Request a Quote
Need volume pricing, availability, or help finding the right part?
Send us your part numbers and quantities — our technical team responds fast during business hours.
Contact Information
Industrial supply distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Puma |
Manufacturer Part Number: |
LA-5706 |
Product Family: |
Oil-Less Air Compressors |
Power Type: |
Electric |
Stage: |
Single Stage |
Drive Style: |
Direct Drive |
Mount Style: |
Portable |
Lubrication Style: |
Oil-Less |
Horsepower: |
1 HP |
Tank Style: |
Hot Dog Hand Carry Tank |
UPC: |
636084 65706 1 |
Availability: |
Regular Stock Unit |
Approx. Ship Weight: |
33 lb |
Approx. Ship Width: |
16 in |
Approx. Ship Height: |
18 in |
Approx. Ship Depth: |
24 in |
