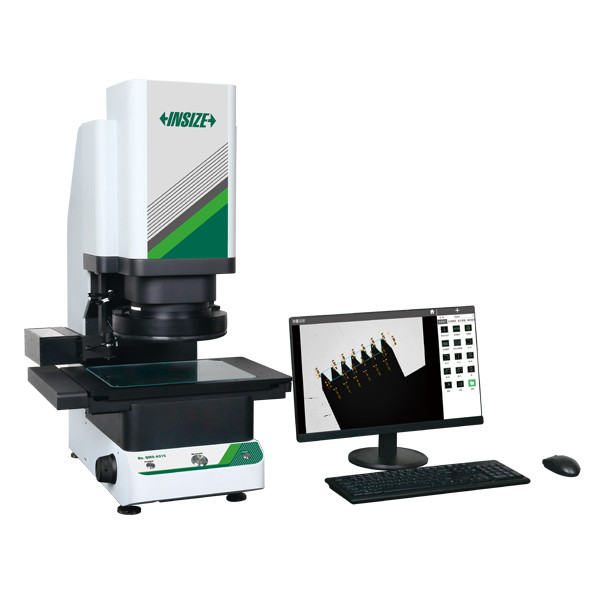

Insize QMS-A315-U – Quick Measurement System
L. Dewitt's SKU #: QMS-A315-U | Mfr Part #: QMS-A315-UInsize QMS-A315-U is a one-shot quick measurement system with a dual-field, dual-telecentric lens covering 11.81 x 7.87IN or 9.05 x 5.12IN. Place one or several parts anywhere in the field and it focuses and measures them automatically in one step.
Key Features
- Measuring range 11.81 x 7.87IN / 9.05 x 5.12IN
- Dual-field, dual-telecentric, low-distortion lens
- Measures one or several parts in a single operation
- Parts can be placed at any position in the field
- Automatic focus and measurement
Technical Specifications
| Part Number | QMS-A315-U |
| Brand | Insize |
| Manufacturer Part Number | QMS-A315-U |
| Product Type | Quick Measurement System |
| Measuring Range | 11.81 x 7.87IN / 9.05 x 5.12IN |
| Lens | Dual-field dual-telecentric |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 176.37 lb |
| Package Dimensions | 23.62IN L x 19.69IN W x 31.5IN H |
| UPC/EAN | 6940561969894 |
| Sold As | 1 Each |
Choosing between options
- Smaller parts? QMS-A110-U has a 3.94 x 3.15IN single-field telecentric lens.
- Calibration plate: QMS-CALIBRATION.
Other sizes & versions in this series
- QMS-A110-U – Low-distortion lens, single-field telecentric; Measurement range 3.94×3.15IN

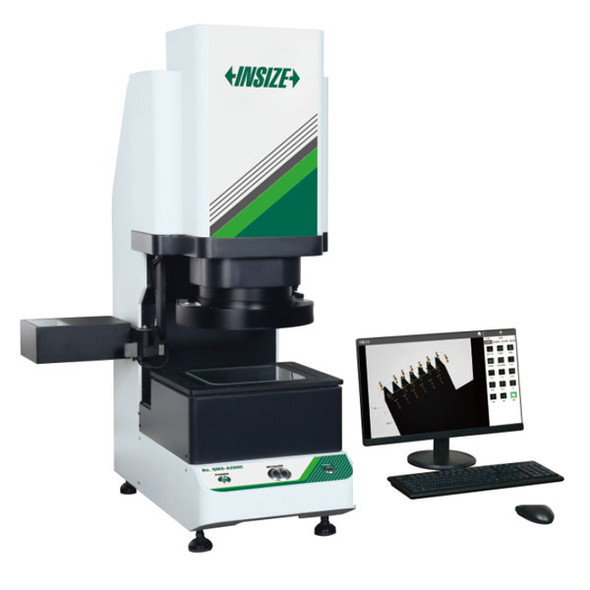

- QMS-A200-U

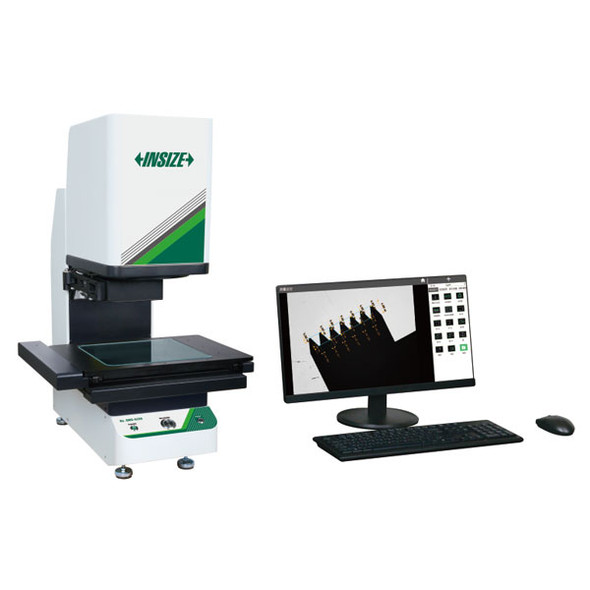

- QMS-A220-U

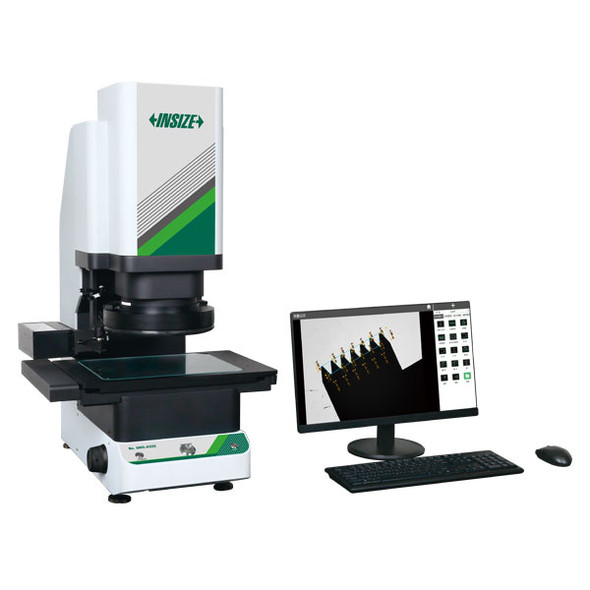

- QMS-A320-U
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and part size and the features you need to measure (a drawing helps) — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
QMS-A315-U |
Product Family: |
Optical and Video Inspection |
Supplier Category Code: |
C |
EAN: |
6940561969894 |
Package Weight: |
176.37 lb |
Package Length: |
23.62 in |
Package Width: |
19.69 in |
Package Height: |
31.5 in |
Feature 1: |
Dual-field dual-telecentric low-distortion lens |
Feature 2: |
Measurement range 11.81×7.87'/9.05×5.12' |
Feature 3: |
One or more workpieces can be measured by one step operation |
Feature 4: |
Place workpieces at any position |
Feature 5: |
Focus and measure automatically |
