Description
Insize ISV-E20 – Videoscope, IP57

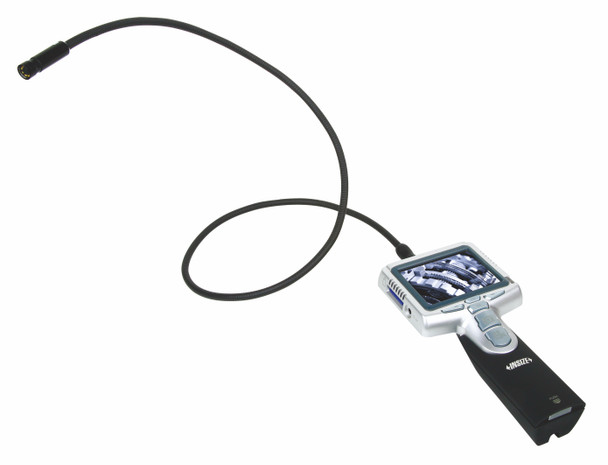

L. Dewitt's SKU #: ISV-E20 | Mfr Part #: ISV-E20Insize ISV-E20 is a handheld videoscope with a .47IN DIA, IP57 waterproof camera probe on a 40IN cable, for inspecting inside machinery, pipes and closed spaces and recording pictures or video.
Key Features
- Probe diameter .47IN, IP57 waterproof
- 0.4M pixel, 720 x 682 at 30fps
- Cable length 40IN
- Takes pictures (JPG) and video (AVI)
- Brightness, contrast and color saturation adjustment
- 2GB SD card memory; TV and USB output
- Rechargeable battery, about 3 hours of working time
Technical Specifications
| Part Number | ISV-E20 |
| Brand | Insize |
| Manufacturer Part Number | ISV-E20 |
| Product Type | Videoscope, IP57 |
| Probe Diameter | .47IN |
| Protection Rating | IP57 |
| Resolution | 720 x 682, 0.4M pixel |
| Frame Rate | 30fps |
| Cable Length | 40IN |
| Memory | 2GB SD card |
| Output | TV, USB |
| File Format | JPG, AVI |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 6.08 lb |
| Package Dimensions | 15.55IN L x 14.37IN W x 4.33IN H |
| UPC/EAN | 6928640323447 |
| Sold As | 1 Each |
What you'll also need
- Optional probe tips: ISV-E20-HOOK hook, ISV-E20-MAGNET magnet pick up, ISV-E20-MIRROR mirror
Choosing between options
- Smaller opening? ISV-E10 has a .22IN DIA IP65 probe with optional longer cables.
Other sizes & versions in this series
- ISV-E10
- ISV-K1810 – Lens Diameter .071IN, Cable Length 40IN
- ISV-K2410 – Lens Diameter .094IN, Cable Length 40IN
- ISV-K2810 – Lens Diameter .110IN, Cable Length 40IN
- ISV-K3915 – Lens Diameter .154IN, Cable Length 60IN
- ISV-K6015 – Lens Diameter .236IN, Cable Length 60IN
- ISV-L – Main UNIT(WITHOUT Cable)
- ISV-VP60 – VIDEOSCOPE
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the opening size and reach you need — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISV-E20 |
Product Family: |
Optical and Video Inspection |
Supplier Category Code: |
B |
EAN: |
6928640323447 |
Package Weight: |
6.08 lb |
Package Length: |
15.55 in |
Package Width: |
14.37 in |
Package Height: |
4.33 in |
Feature 1: |
IP57 waterproof. Diameter .47'. Pixel 0.4M. Resolution 720×682. Frame rate 30fps. Cable: length 40' |
Feature 2: |
Function: take picture, take video. File format: picture JPG, video AVI. |
Feature 3: |
Image process: brightness, contrast, color saturation. |
Feature 4: |
Memory 2G SD card. Output: TV, USB. |
Feature 5: |
Power supply rechargeable battery (for 3 hours working) |
