Description
Insize ISV-1H4307 – Rigid Borescope, 70° View, 11.89IN

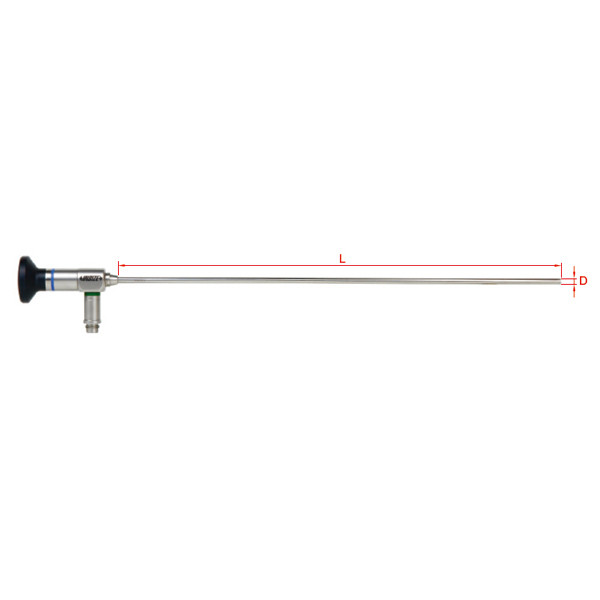

L. Dewitt's SKU #: ISV-1H4307 | Mfr Part #: ISV-1H4307Insize ISV-1H4307 is a 11.89IN long, .16IN DIA rigid borescope with 70° angled viewing, for looking inside bores, castings, engine ports and other cavities through a small opening. The probe is sealed to IP67 and can be used in liquid from -14 to 185°F.
Key Features
- Working length 11.89IN, diameter .16IN
- View direction 70°; angle of view 60° or more
- Focus distance .08IN; depth of view .2-4IN
- IP67 dust- and waterproof; usable in liquid from -14 to 185°F
Technical Specifications
| Part Number | ISV-1H4307 |
| Brand | Insize |
| Manufacturer Part Number | ISV-1H4307 |
| Product Type | Rigid Borescope, 70° View |
| Length | 11.89IN |
| Diameter | .16IN |
| View Direction | 70° |
| Angle of View | 60° or more |
| Focus Distance | .08IN |
| Depth of View | .2-4IN |
| Protection Rating | IP67 |
| Liquid Temperature | -14 to 185°F |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 3.25 lb |
| Package Dimensions | 17.72IN L x 7.48IN W x 3.94IN H |
| UPC/EAN | 6928640323812 |
| Sold As | 1 Each |
What you'll also need
Choosing between options
- Same 11.89IN length, different view: ISV-1H4300 (0°), ISV-1H4303 (30°).
- Need a shorter probe? ISV-1H4177 is the 6.85IN version with 70° view.
Other sizes & versions in this series
- ISV-1H4170 – 6.85IN
- ISV-1H4173 – 6.85IN
- ISV-1H4177 – 6.85IN
- ISV-1H4300 – Length 11.89IN. View direction 0°
- ISV-1H4303 – Length 11.89IN. View direction 30°
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the bore depth and opening size and the view direction you need — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISV-1H4307 |
Product Family: |
Optical and Video Inspection |
Supplier Category Code: |
B |
EAN: |
6928640323812 |
Package Weight: |
3.25 lb |
Package Length: |
17.72 in |
Package Width: |
7.48 in |
Package Height: |
3.94 in |
Feature 1: |
Length 11.89'. View direction 70°. |
Feature 2: |
Diameter .16'. Angle of view ≥60°. |
Feature 3: |
Focus distance .08', depth of view .2~4'. |
Feature 4: |
Dust/waterproof level: IP67. Can be used in the liquid with temperature -14°F~185°F. |
