Description

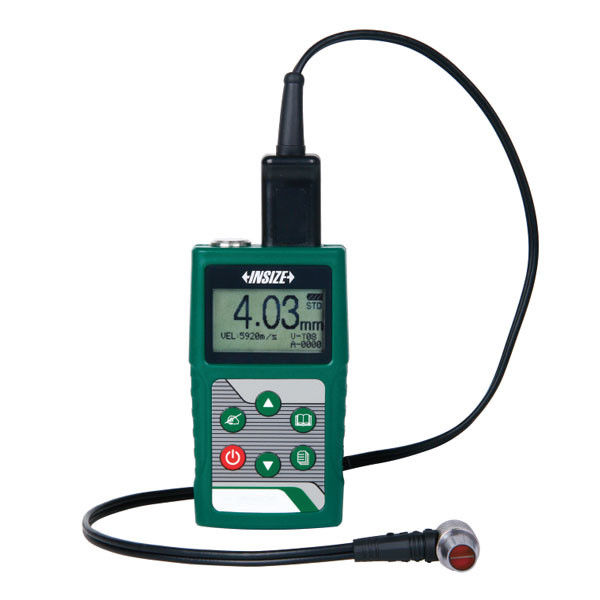

Insize ISU-250C – Ultrasonic Thickness Gage
L. Dewitt's SKU #: ISU-250C | Mfr Part #: ISU-250CInsize ISU-250C is an ultrasonic thickness gage that measures wall thickness from one side of pipe, tanks and similar parts, reading to .001IN below 10IN. It stores up to 5000 readings with location numbers and judges each reading against high and low limits.
Key Features
- Resolution .001IN (under 10IN), .01IN (10IN and over)
- Repeatability .001IN (under 4IN), .004IN (4-10IN), .01IN (10IN and over)
- Memory for up to 5000 readings with location numbers
- High and low limits with pass/fail judgement
- Materials: metal, plastic, glass, nylon, resin, ceramic, rubber, ice
- Sound velocity range .039-.394IN/μs
Technical Specifications
| Part Number | ISU-250C |
| Brand | Insize |
| Manufacturer Part Number | ISU-250C |
| Product Type | Ultrasonic Thickness Gage |
| Resolution | .001IN (under 10IN), .01IN (10IN and over) |
| Repeatability | .001IN (under 4IN); .004IN (4-10IN); .01IN (10IN and over) |
| Memory | 5000 readings with location number |
| Velocity Range | .039-.394IN/μs |
| Applicable Materials | Metal, plastic, glass, nylon, resin, ceramic, rubber, ice |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 3.46 lb |
| Package Dimensions | 12.99IN L x 11.22IN W x 3.94IN H |
| UPC/EAN | 6928640324710 |
| Sold As | 1 Each |
Choosing between options
Other sizes & versions in this series
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and the material and thickness range — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISU-250C |
Product Family: |
Gages and Reference Tools |
Supplier Category Code: |
B |
EAN: |
6928640324710 |
Package Weight: |
3.46 lb |
Package Length: |
12.99 in |
Package Width: |
11.22 in |
Package Height: |
3.94 in |
Feature 1: |
Resolution: .001' (range<10'), .01' (range≥10'). |
Feature 2: |
Repeatability: .001' (range<4'), .004' (range 4~10'), .01' (range≥10'). Velocity .039-.394'/μs. |
Feature 3: |
Measure the thickness from one side of object, suitable for pipe, tank, etc. |
Feature 4: |
Applicable material: metal, plastic, glass, nylon, resin, ceramic, rubber, ice. |
Feature 5: |
Memory of maximum 5000 readings with location number |
Feature 6: |
Low and high limits with judgement. |
